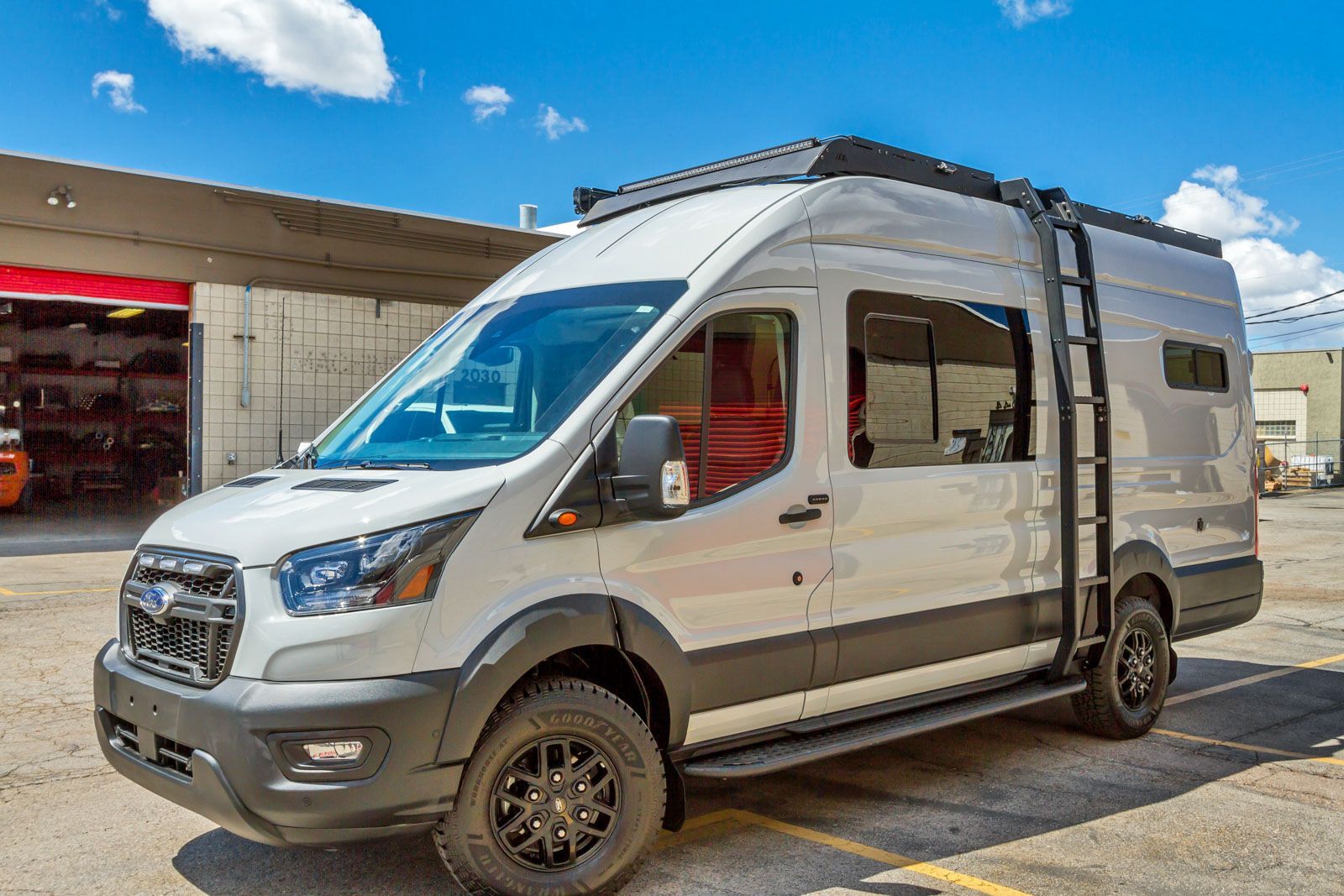

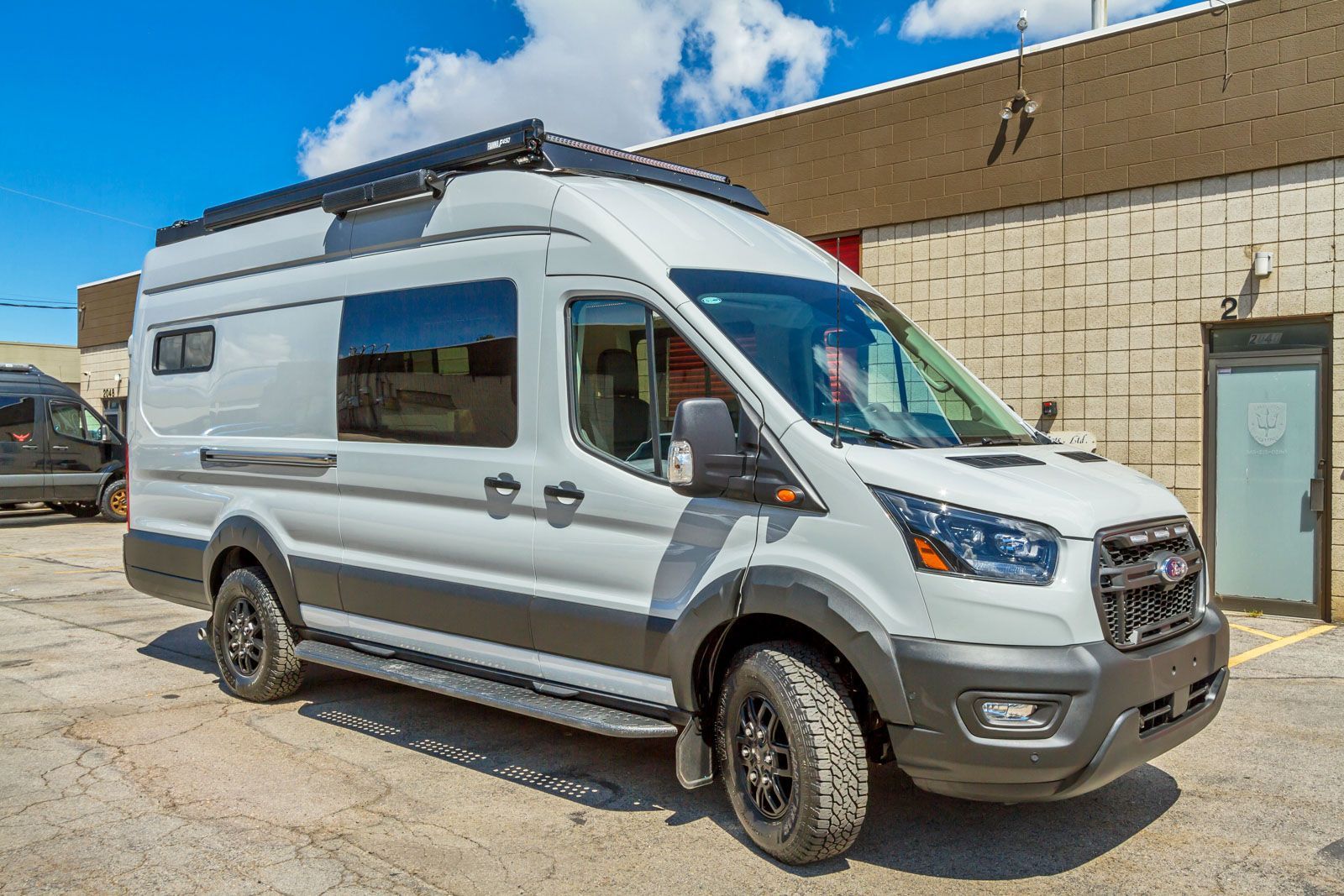

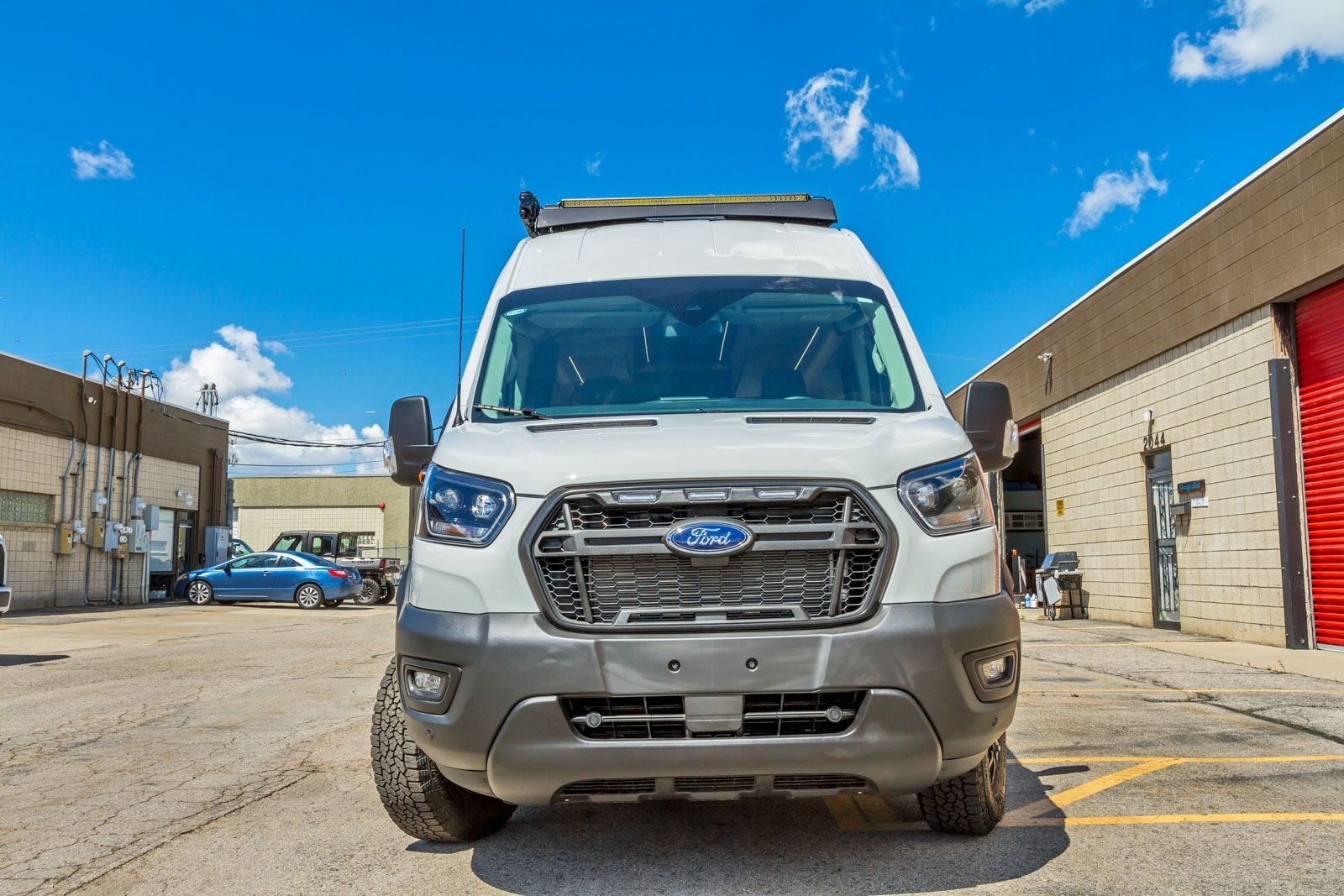

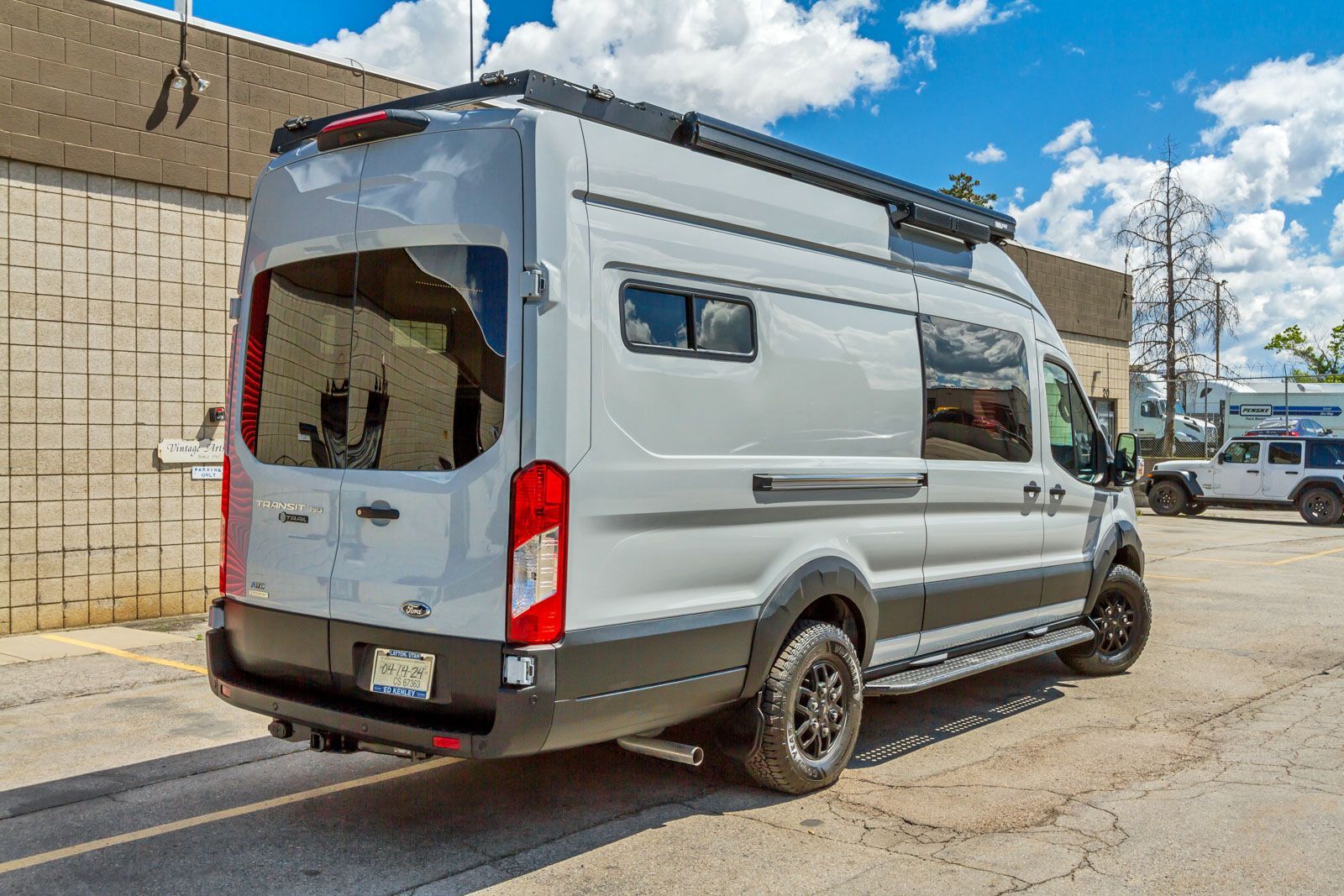

2024 Rugged Ford Transit

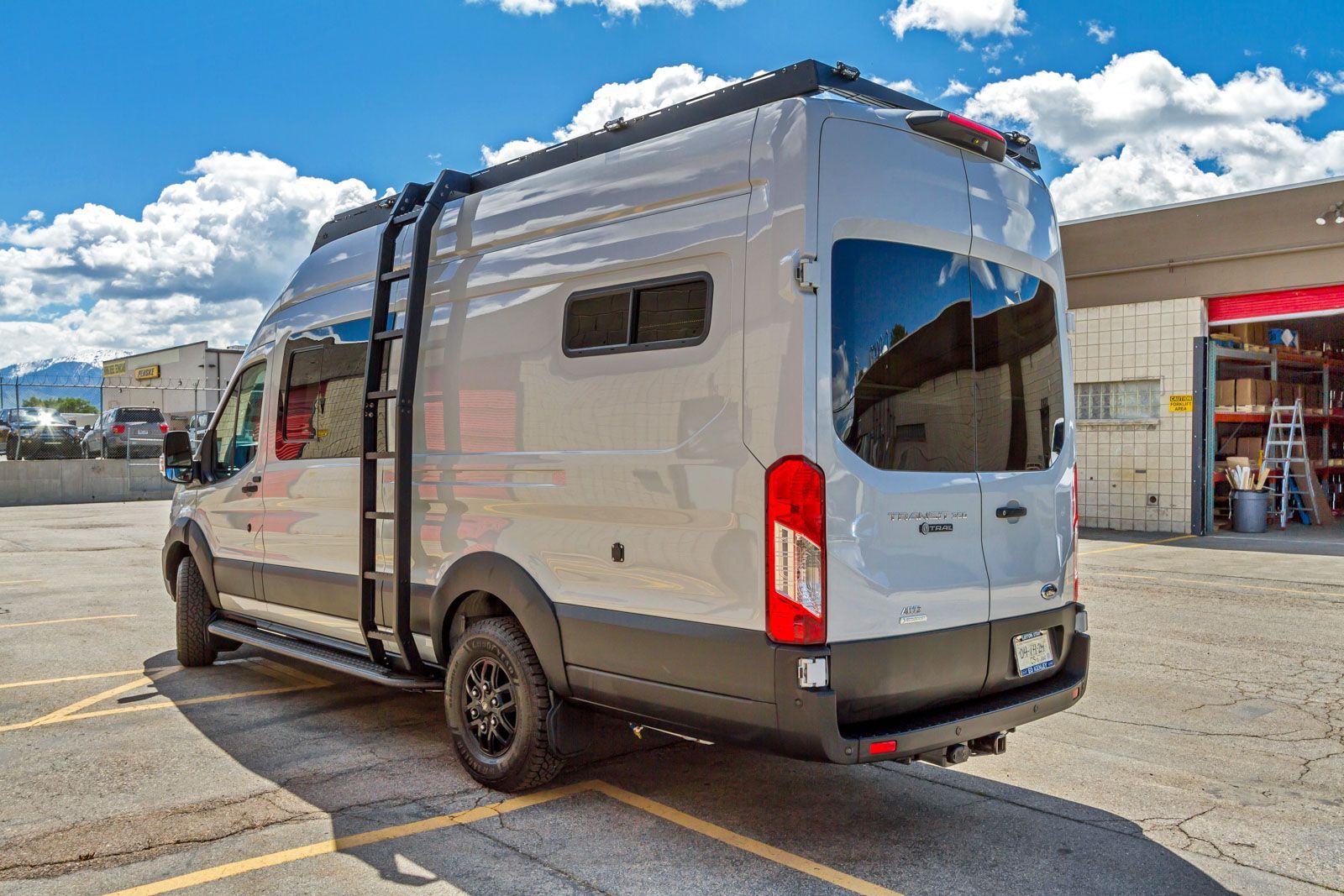

A rugged 2024 AWD Ford Transit Trail conversion engineered by Bitterroot Builds for aggressive off-road capability and high-end interior comfort. This specialized build features a custom bamboo ceiling, 500W of solar power, and a 30-gallon fresh water system, all integrated into our signature 80/20 aluminum architecture.
OVERVIEW

The Ultimate All-Terrain Studio

The 2024 Ford Transit Trail AWD is the perfect canvas for the explorer who wants factory-backed off-road performance paired with a custom, high-luxury interior. This build was engineered to handle the steep grades and variable traction of the Intermountain West while providing an exceptionally warm and inviting living space. With a focus on renewable energy (500W Solar) and 4-season resilience, this Transit Trail is a self-contained fortress designed to push further into the backcountry without sacrificing the comforts of a modern home.

Interior layout & Design
Organic Textures and Structural Strength

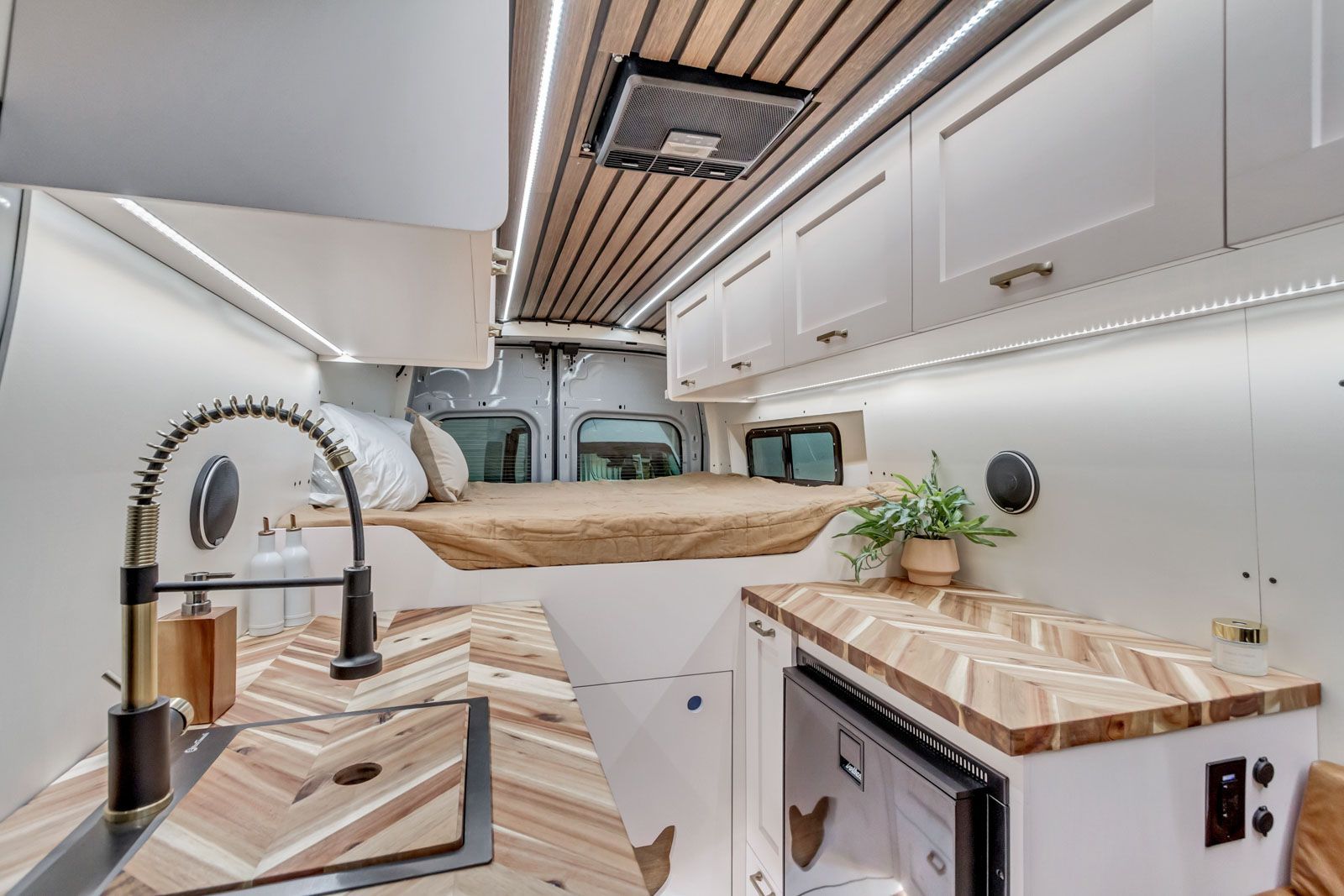

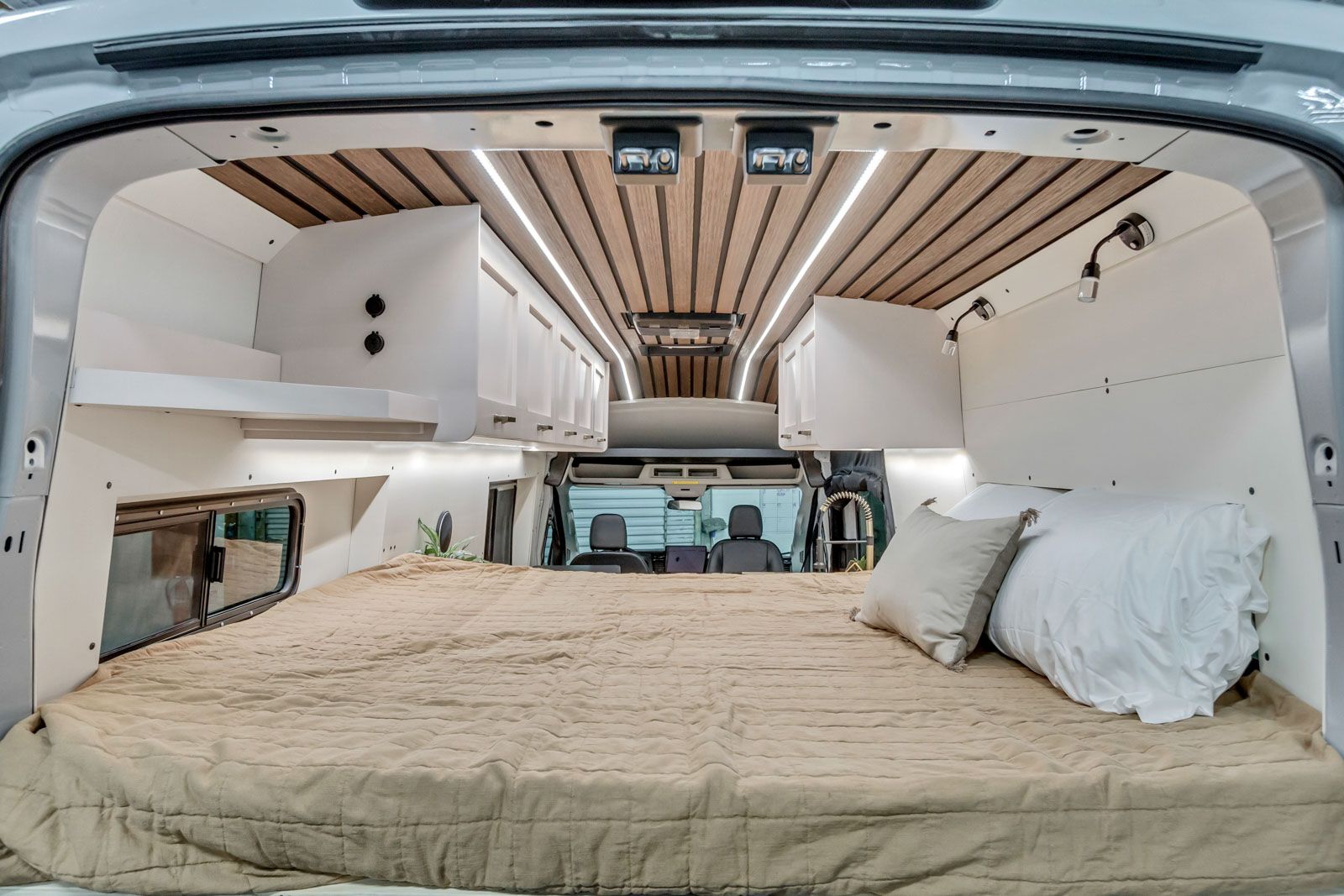

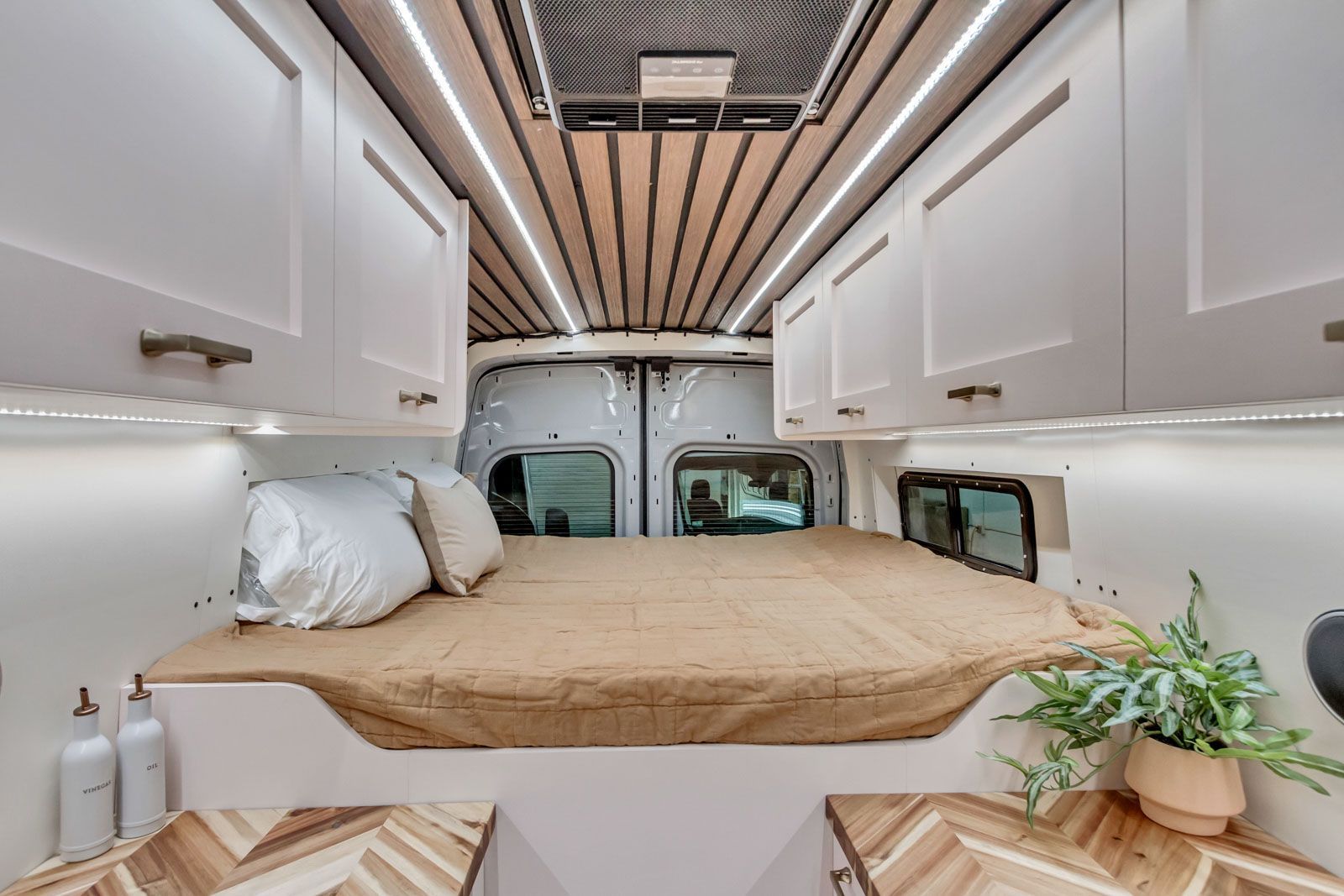

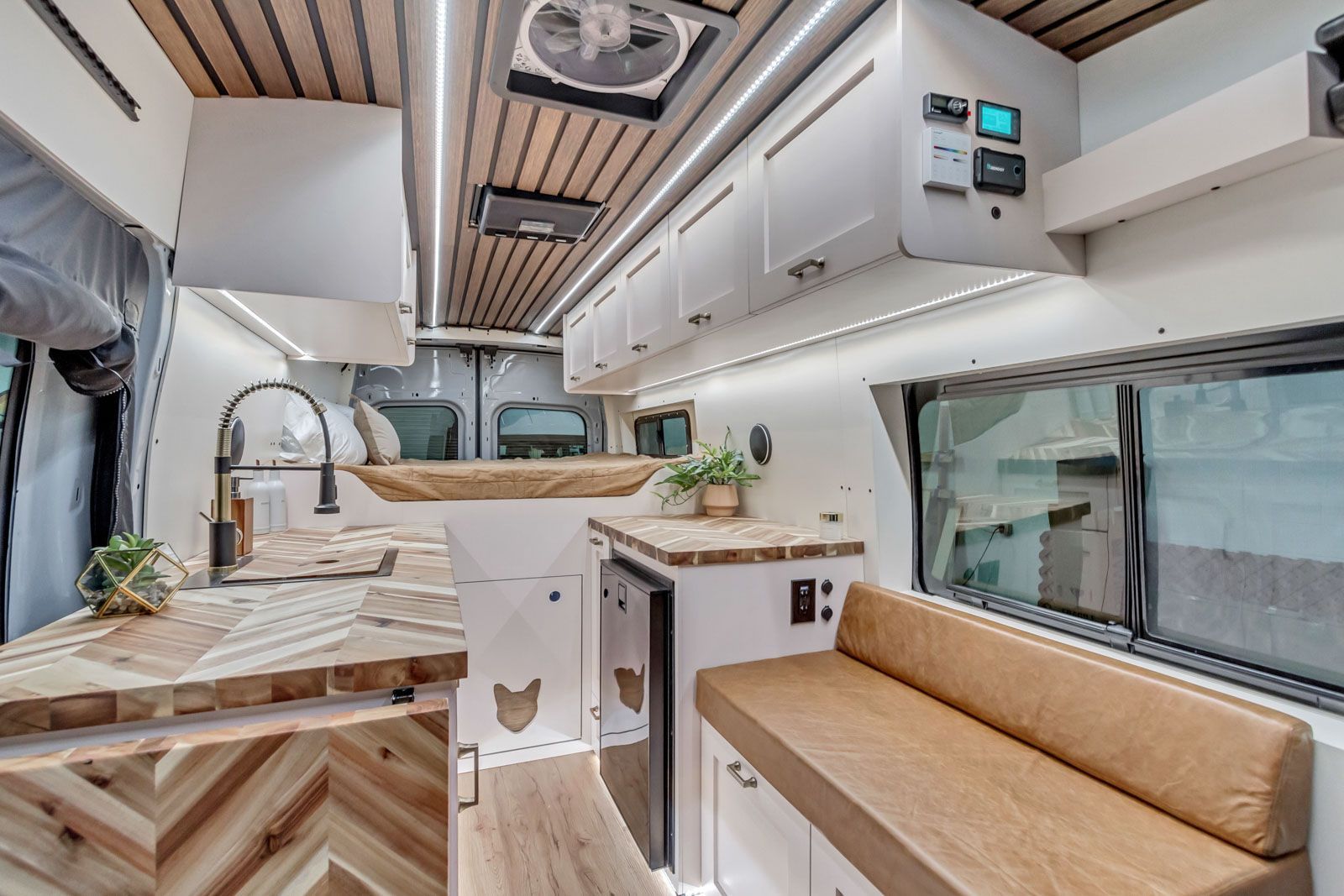

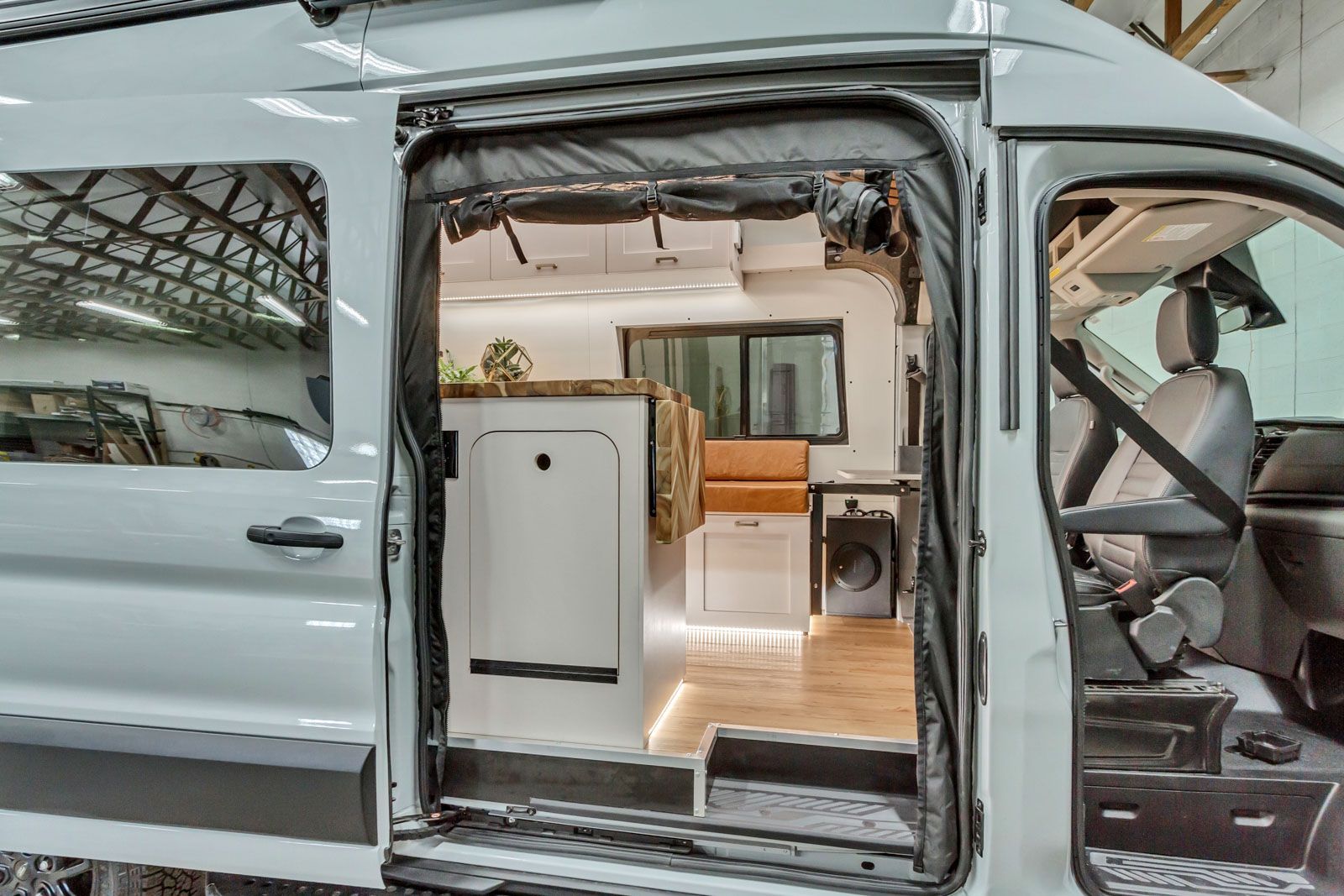

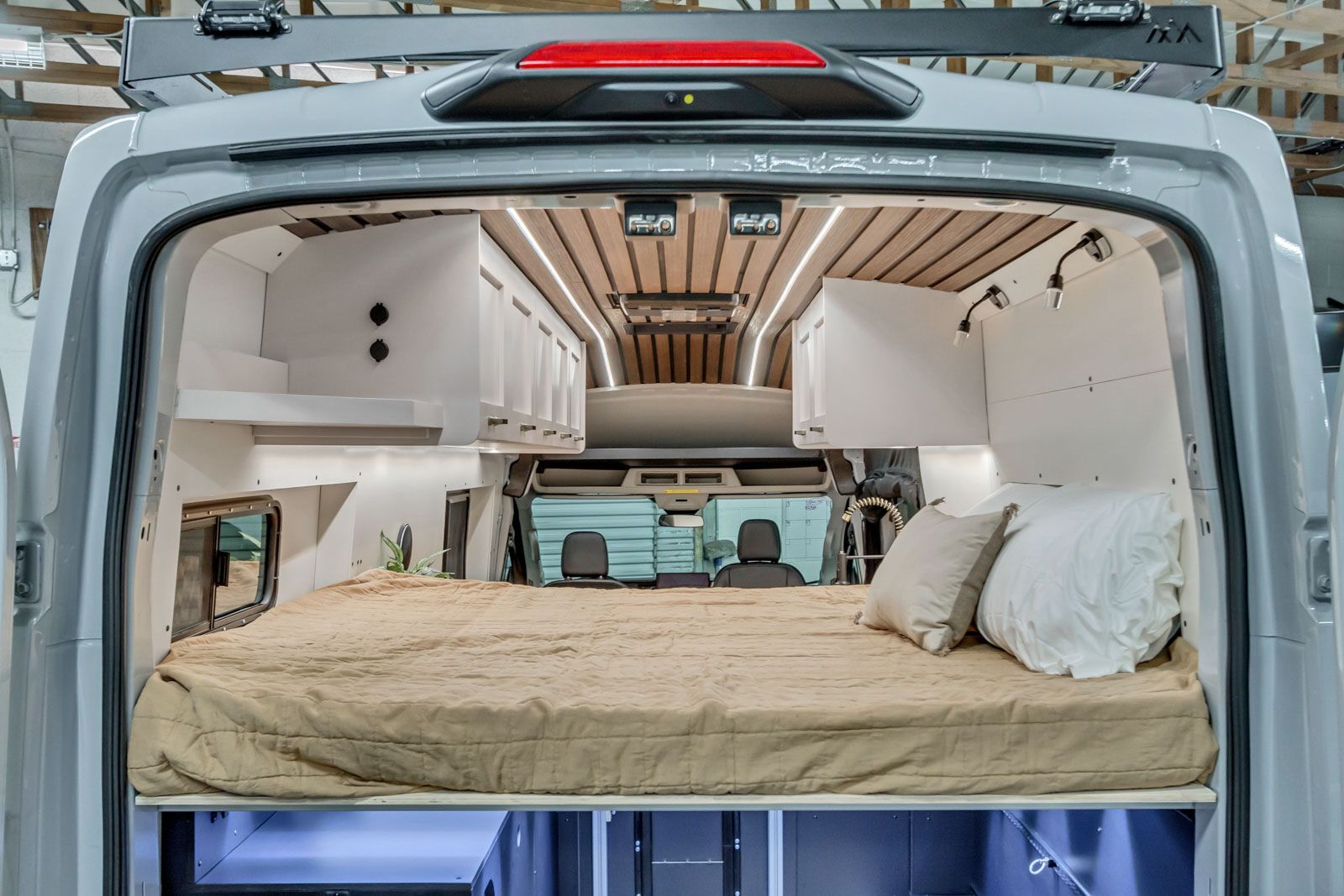

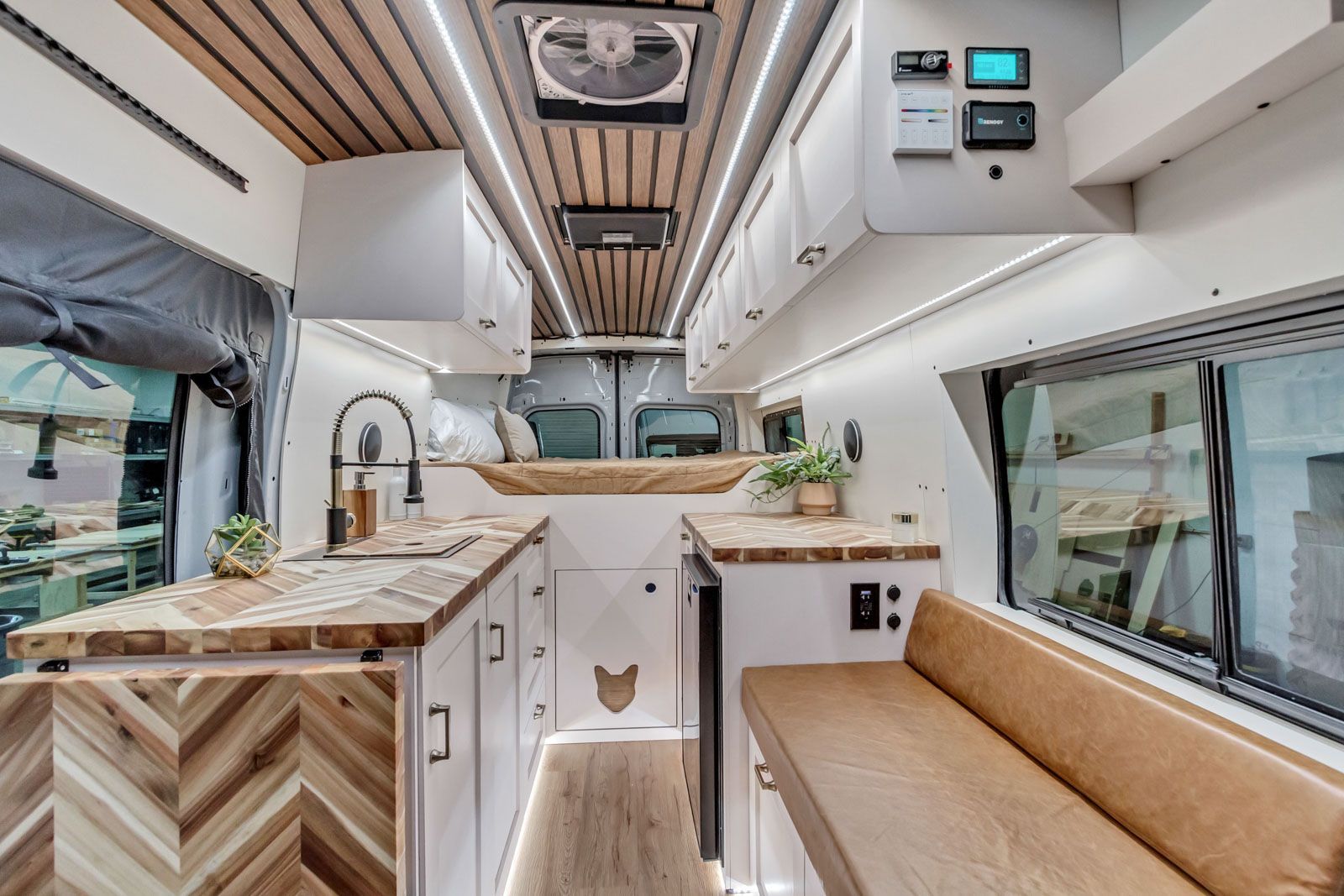

The interior of this Transit Trail breaks away from the "industrial" feel with a stunning Custom Bamboo Ceiling and Shiplap Wall Paneling, creating an organic, cabin-like atmosphere. Beneath these natural textures lies the "Bitterroot Standard"—an aerospace-grade 80/20 extruded aluminum frame that prevents the squeaks and rattles common in Transit builds. The layout features a fixed rear bed and a spacious kitchen galley with epoxied butcherblock countertops, providing a durable and aesthetically striking workspace for cooking or remote work.

Off-grid systems & mobility
Solar-Dominant Autonomy

Engineered for the sun-drenched landscapes of the West, this rig boasts a massive 500 Watts of Solar feeding a 600Ah Lithium battery bank. This allows the Dometic RTX 2000 12V AC and induction cooktop to operate with minimal reliance on alternator charging or shore power. For water and climate, we’ve integrated a 30-gallon fresh water tank, a tankless water heater, and the Airtronic D2 diesel heater, ensuring that whether you are showering after a muddy ride or waking up to a frozen trailhead, your systems are ready to perform.

Detailed build Specifications

Interior Finish & Craftsmanship

  • Framing: Everything is framed in 80/20 extruded aluminum for lifetime structural rigidity.
  • Ceiling/Walls: Custom Bamboo Ceiling and Shiplap Wall Paneling.
  • Cabinetry: High-quality Baltic Birch with a painted shaker finish.

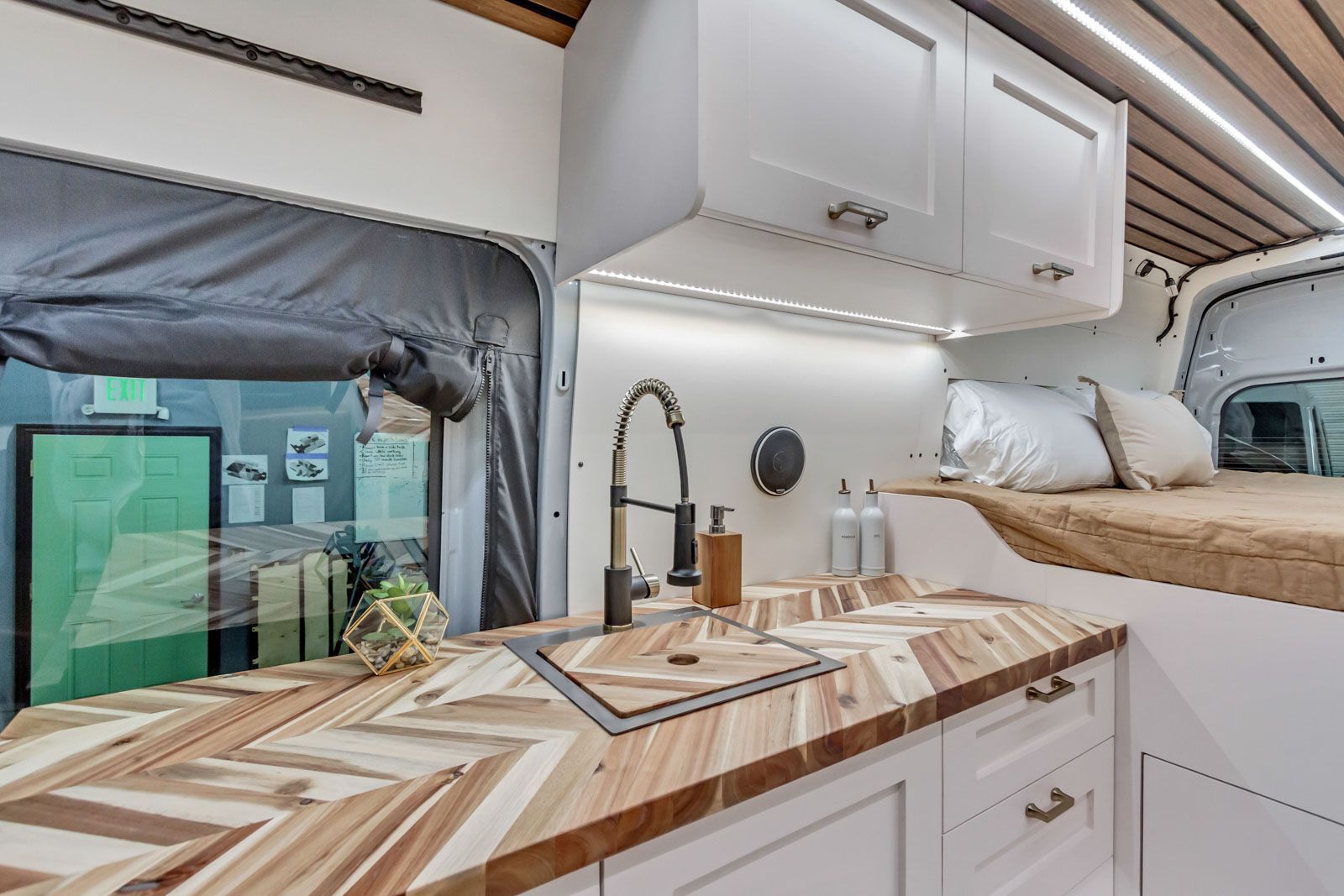

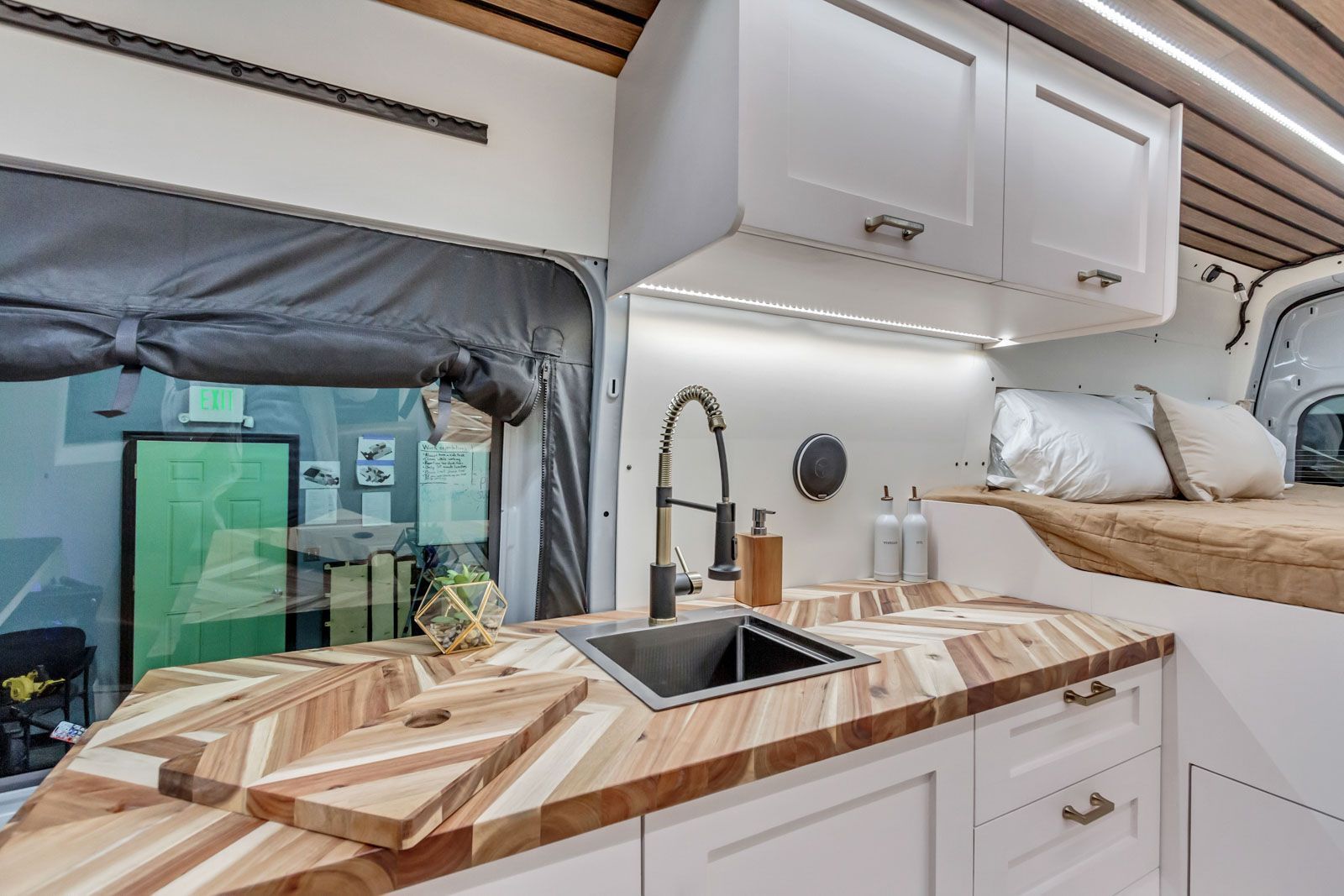

  • Countertops: Epoxied Butcherblock with Stainless Steel Sink & cover.
  • Flooring: Lifeproof waterproof flooring with Aluminum floor trim.

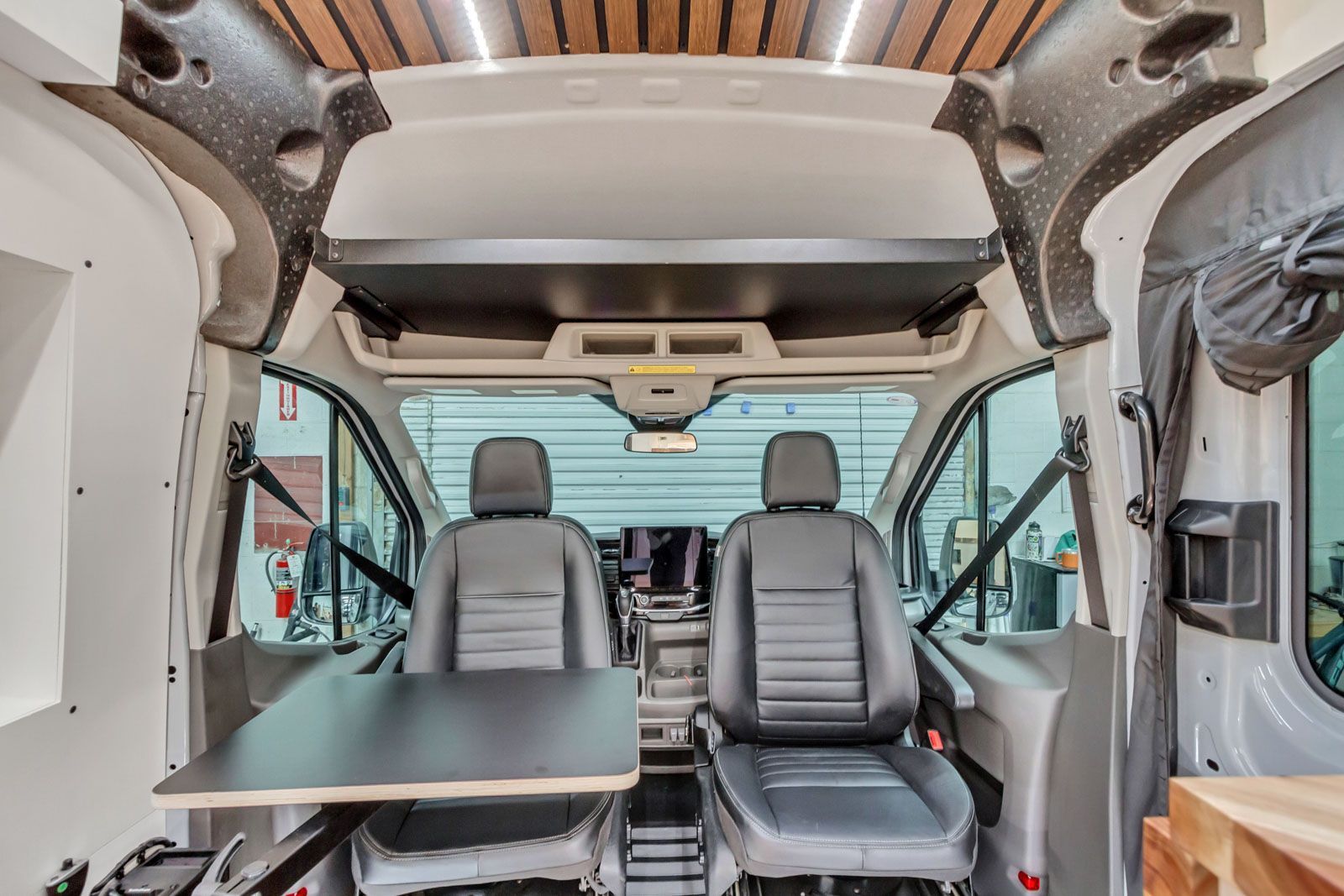

  • Seating: Driver and Passenger swivel seats with a Lagun Mount butcher block table.

Electrical & Power Systems

  • Battery Bank: 600Ah Lithium Batteries.
  • Solar Power: 500 Watts of Solar with a Renogy Solar Charge Controller.
  • Charging: DC-DC 40amp Alternator Charging and 100Amp Shore Power charger.
  • Inverter: 2000/4000 watt pure sine wave inverter.
  • Monitoring: Renogy Battery Monitor and Master ON-OFF switch.
  • Access: 8 AC outlets and USB/USBC ports throughout.

Storage & Gear Utility

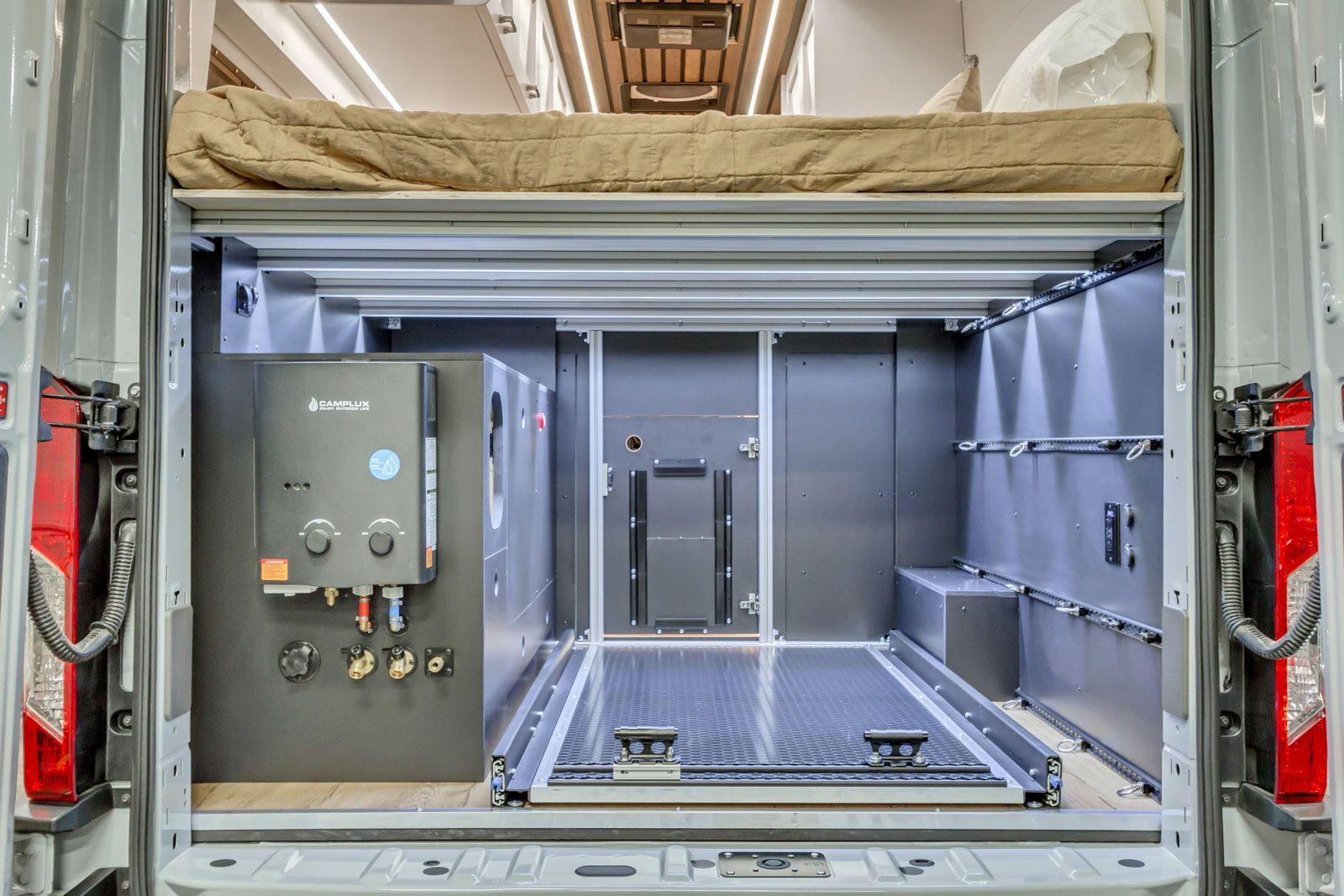

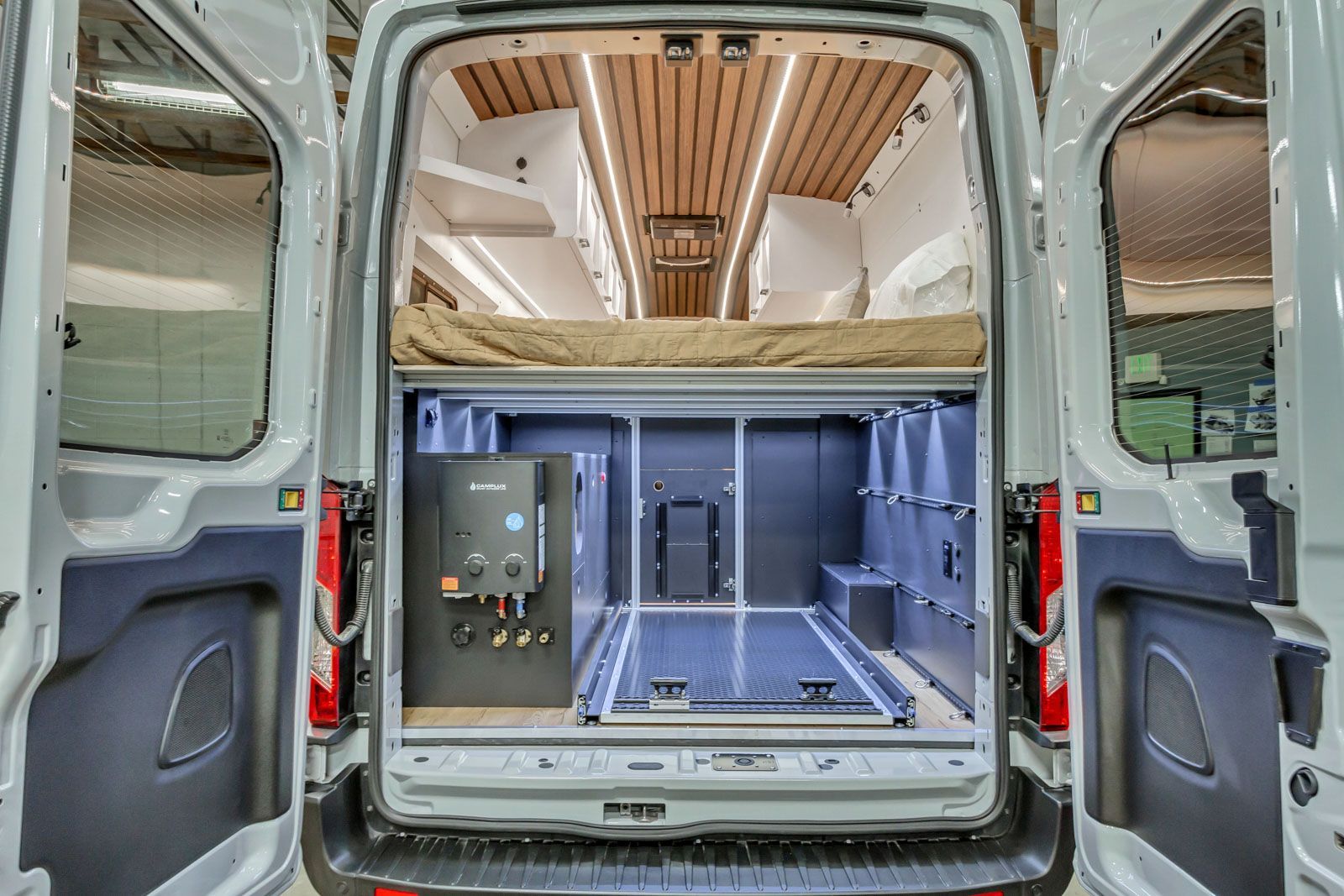

  • Garage Zone: 200lb garage slider and tons of under-bed storage.

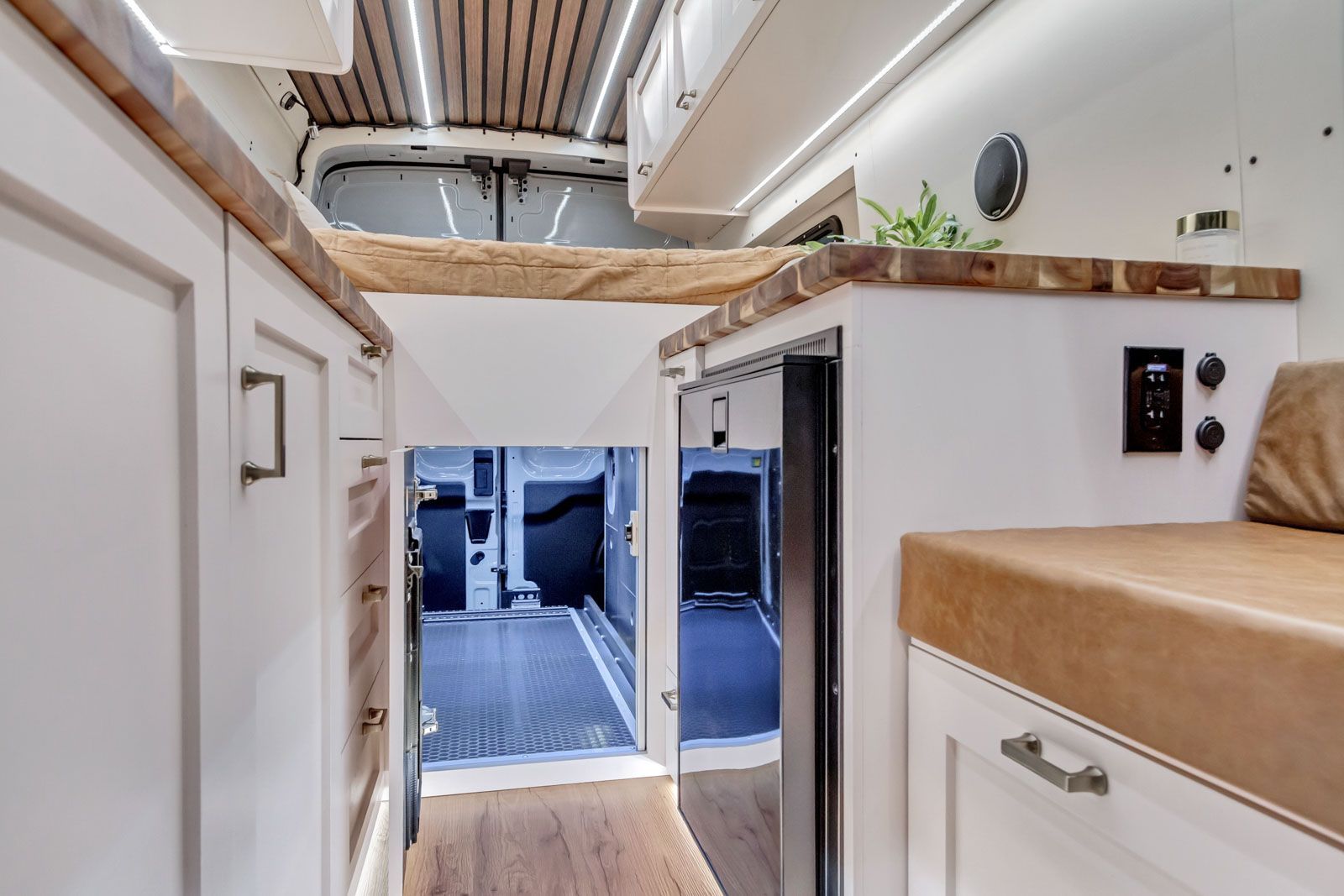

  • Kitchen: Kitchen Galley with Isotherm 130 Fridge and induction cooktop.
  • Exterior: Fiamma Awning and drop-down sliding door table.

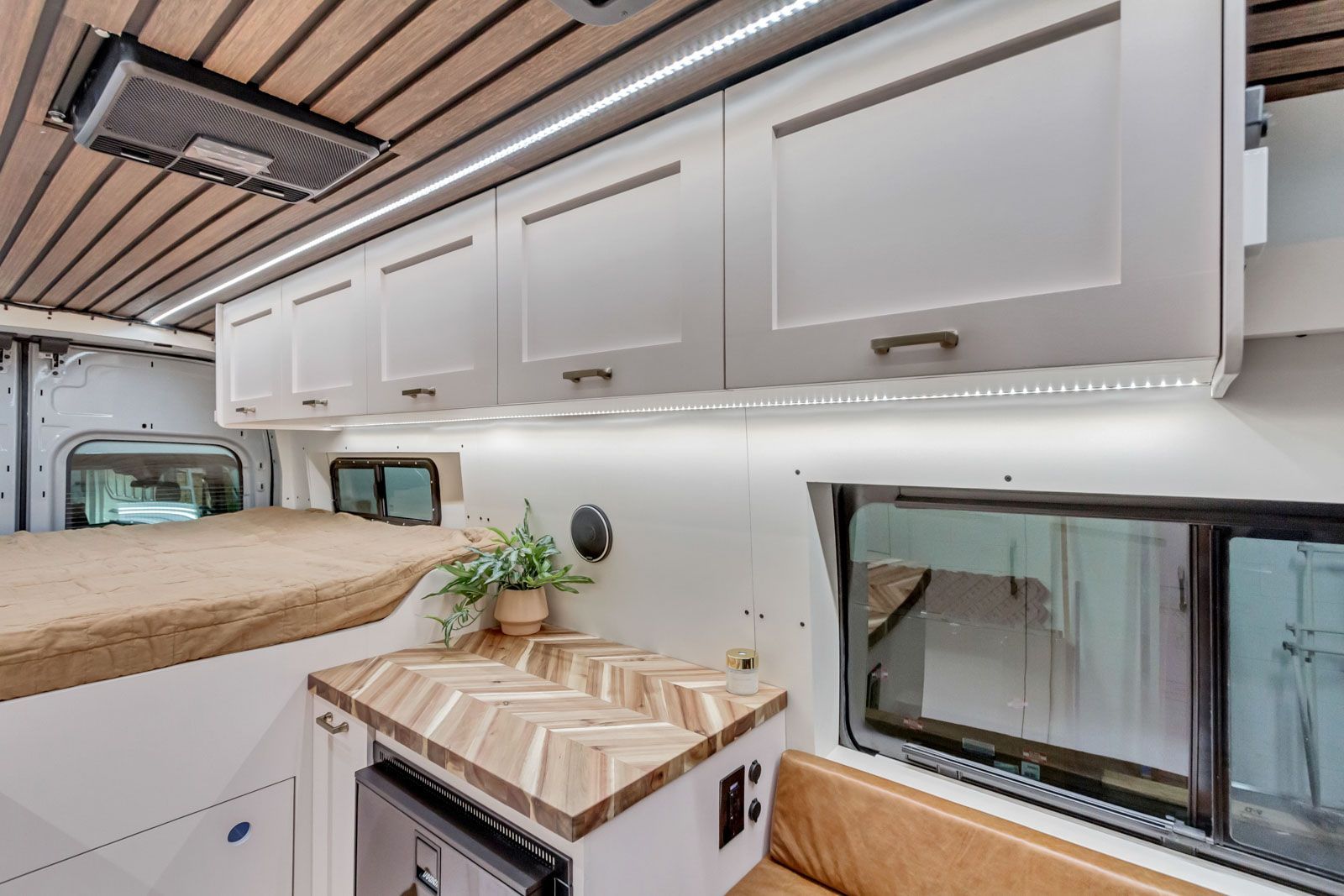

  • Cabin: Overhead Cabinets and Drivers cab headliner shelf.

Climate & Insulation

  • Insulation: Four-season insulation package for total thermal control.
  • Cooling: Dometic RTX 2000 12v AC (Off-grid capable).
  • Heating: Airtronic D2 Diesel heater for cold-weather reliability.
  • Ventilation: 1 MaxxFan Deluxe with Remote.

Lighting & Audio Ambiance

  • Main Lighting: Main Cabin LEDs with Dimmer switch.
  • Detail Lighting: Lighting under each overhead cabinet, reading lights, and accent lighting.
  • Audio: Custom sound system for high-fidelity travel.

Water & Sanitation

  • Storage: 30 Gallon Fresh Water Tank.
  • Hot Water: Tankless on-demand water heater.
  • Delivery: Shurflo 3.5 GPM Pump.
  • Utility: Hose hookups and Outdoor Shower.
