2023 4x4 Sprinter 144 Spec Build

This 2023 4x4 Sprinter is a "Stage 3" build that perfectly balances aggressive exterior utility with an artisanal interior. By featuring a Custom Epoxy River Table and a full suite of Backwoods off-road armor, we have created a vehicle that is as much a conversation piece as it is a rugged backcountry tool.
OVERVIEW

The Alpine Armor Edition

An elite 2023 4x4 Mercedes Sprinter 144 engineered by Bitterroot Builds for high-clearance exploration and bespoke interior luxury. This build features a signature epoxy river table, a comprehensive Backwoods armor package, and Flarespace flares for an expanded, 4-season sleeping environment.

Interior layout & Design
Bespoke Artistry Meets 80/20 Rigidit

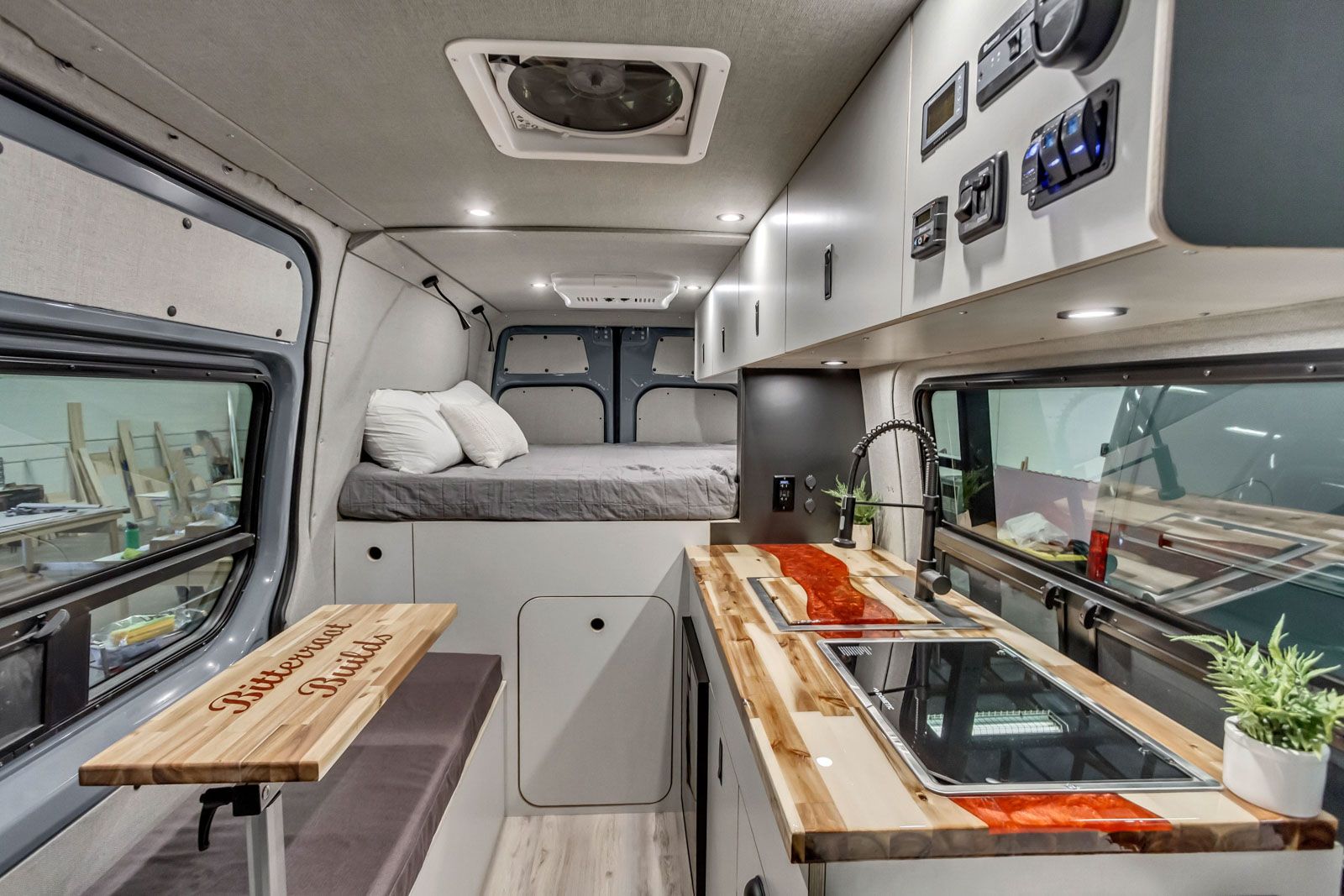

The interior is defined by the Butcher Block River Table with a custom epoxy finish, a signature Bitterroot element that adds a personalized, artistic touch to the dining area. To maximize the 144's footprint, we installed Flarespace Flares, allowing for a wider, more comfortable sleeping area. The cabinetry is built from High-quality Baltic Birch with Wilsonart laminate, all precision-bolted to our aerospace-grade 80/20 aluminum skeleton. This ensures that despite the rugged off-road exterior, the interior remains a silent, rattle-free sanctuary wrapped in acoustic dampening marine fabric.

Off-grid systems & mobility
Redundant Power and Trail-Ready Utility

Engineered for true off-grid autonomy, this build features a 600Ah Lithium battery bank supported by Victron shore power charging and DC-DC alternator charging. The systems are designed to support a Dometic AC system and a 2-burner propane stove, offering a full-service kitchen experience in the wild. For gear management, we’ve integrated a sliding bike/storage tray in the garage and an Owl Tire Ladder Carrier on the exterior. With 20 gallons of fresh water, a tankless heater, and a Dometic portable toilet, this 4x4 is fully equipped for multi-week expeditions through the most remote regions of the West.

Detailed build Specifications

Interior Finish & Craftsmanship

Framing: Everything is framed in 80/20 extruded aluminum for a lifetime of durability.

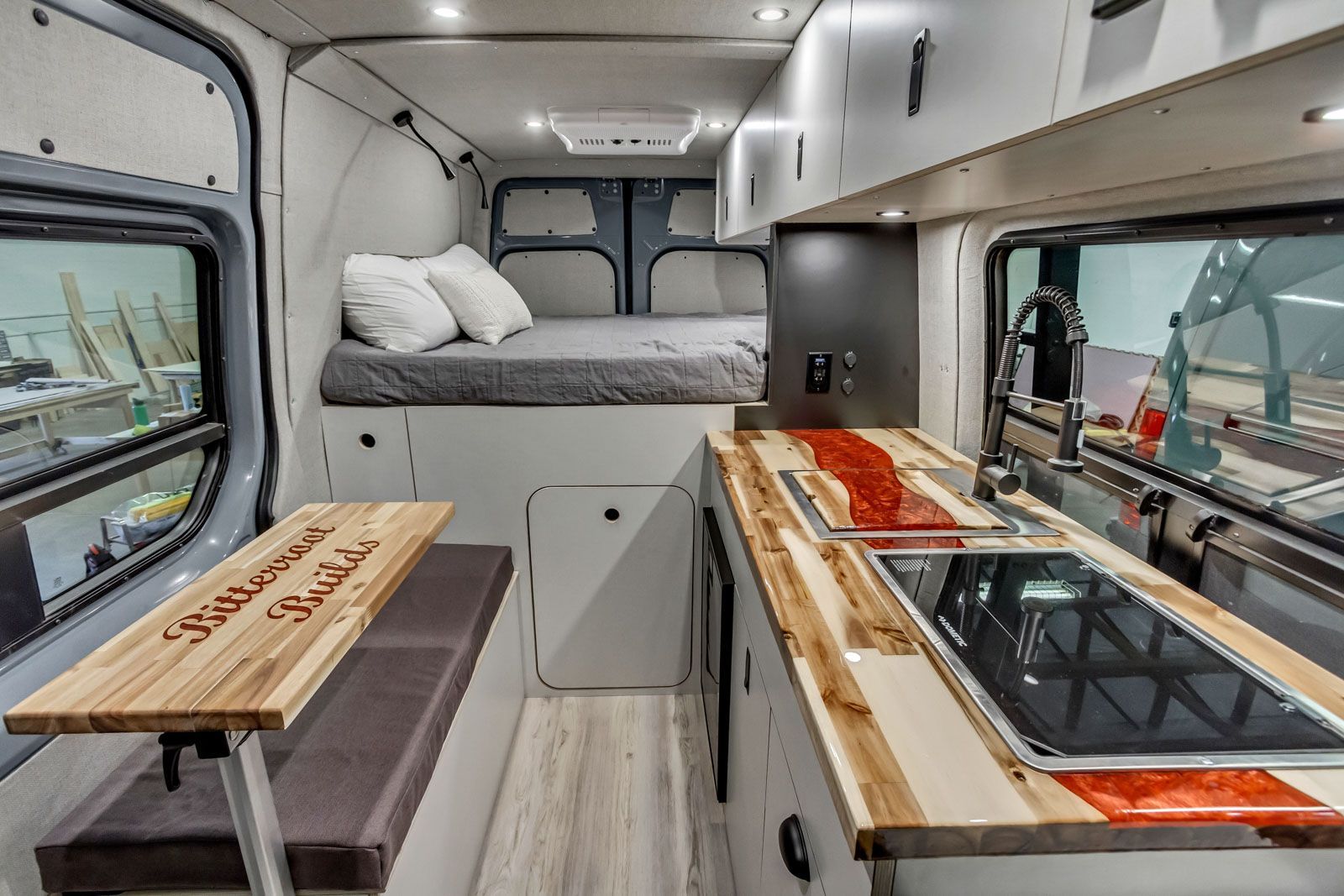

Artisanal Detail: Butcher Block River Table with Epoxy Finish and matching cutting board.

Cabinetry: Baltic Birch with premium Wilsonart laminate finish.

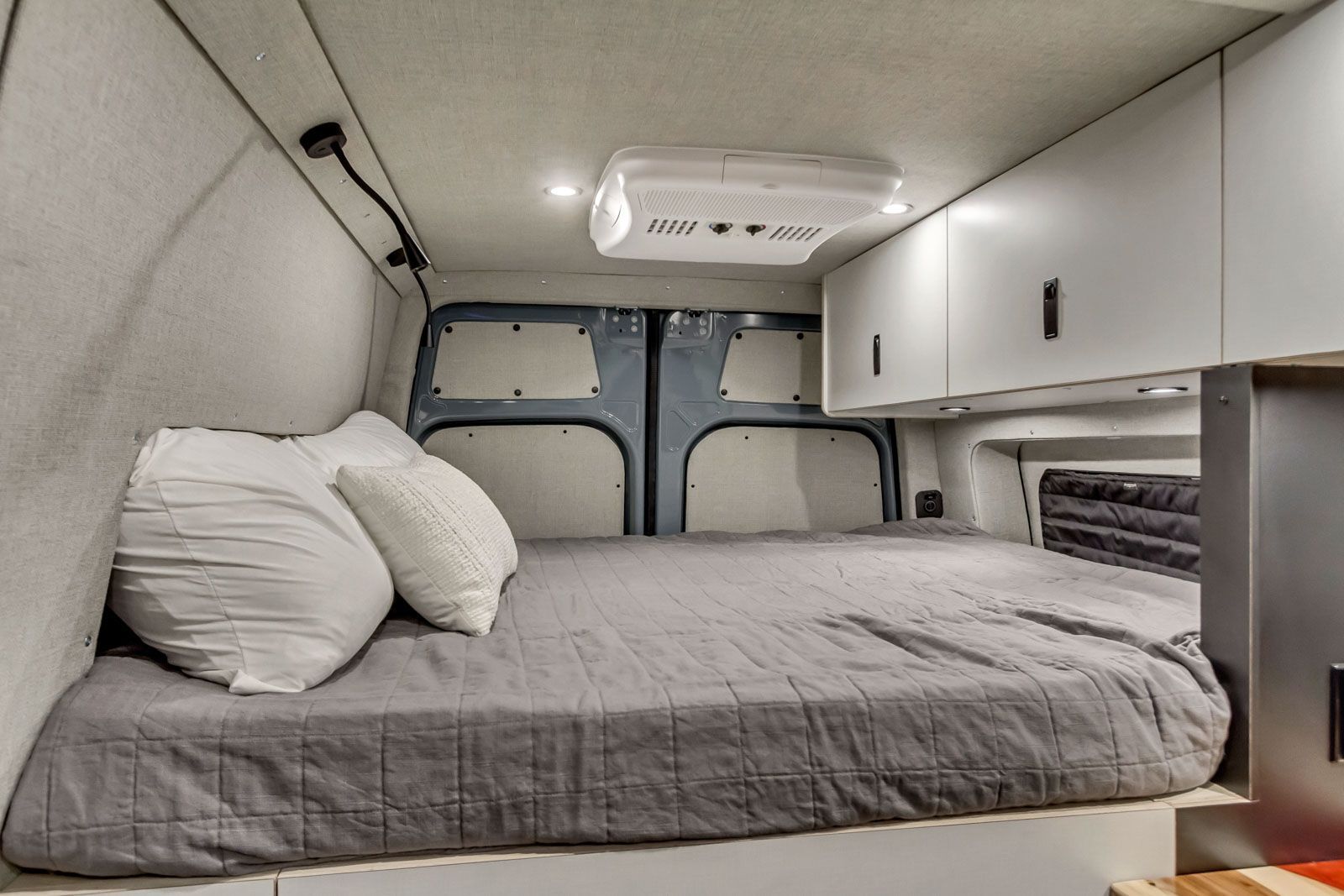

Sleeping: Flarespace Flares for expanded lateral sleeping space.

Flooring: Lifeproof waterproof flooring with Aluminum floor trim.

Walls: Custom acoustic dampening marine fabric wrapped panels.

Electrical & Power Systems

  • Battery Bank: 600Ah Lithium Battery System.
  • Charging: DC-DC Alternator Charging and 200 Watts of Solar (Expandable).
  • Shore Power: Victron Shore Power Charging and 2000/4000W Inverter.
  • Management: Renogy Charge Controller and Battery Monitor.
  • Access: 8 AC outlets and USB/USBC ports throughout.

Storage & Gear Utility

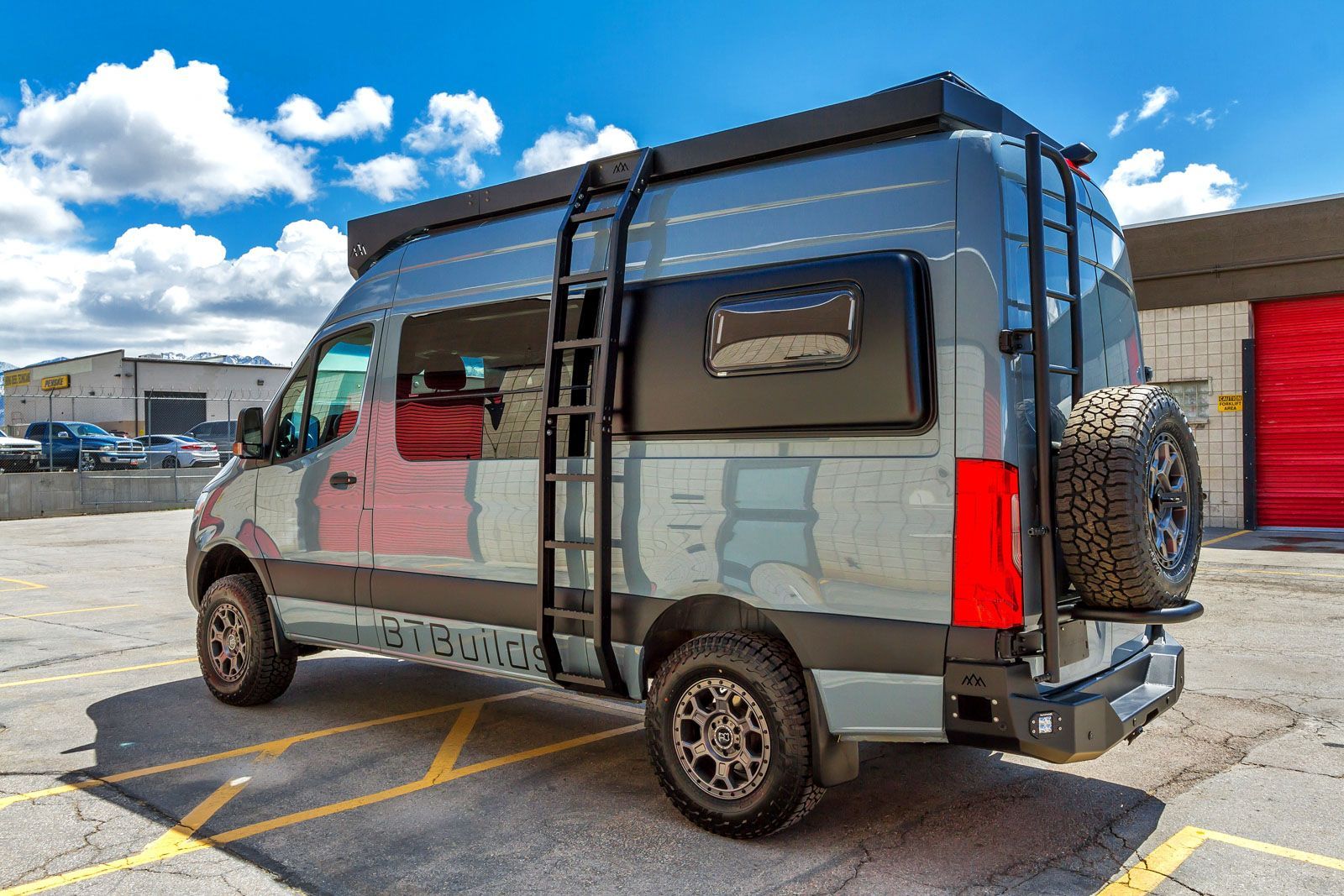

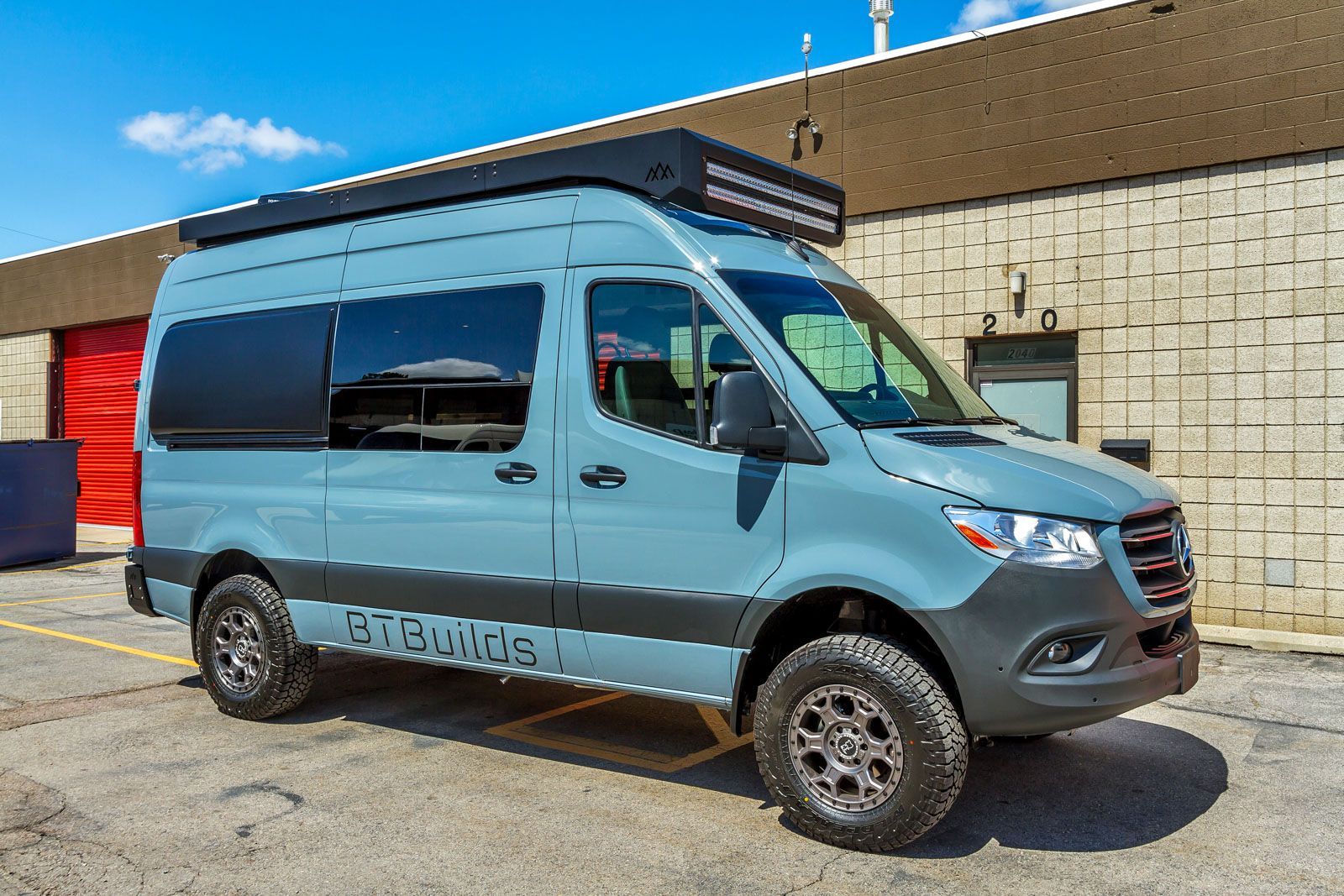

Exterior Armor: Backwoods XL Roof Rack and Rear Bumper with lights.

Garage: Sliding Bike/Storage tray and tons of gear volume.

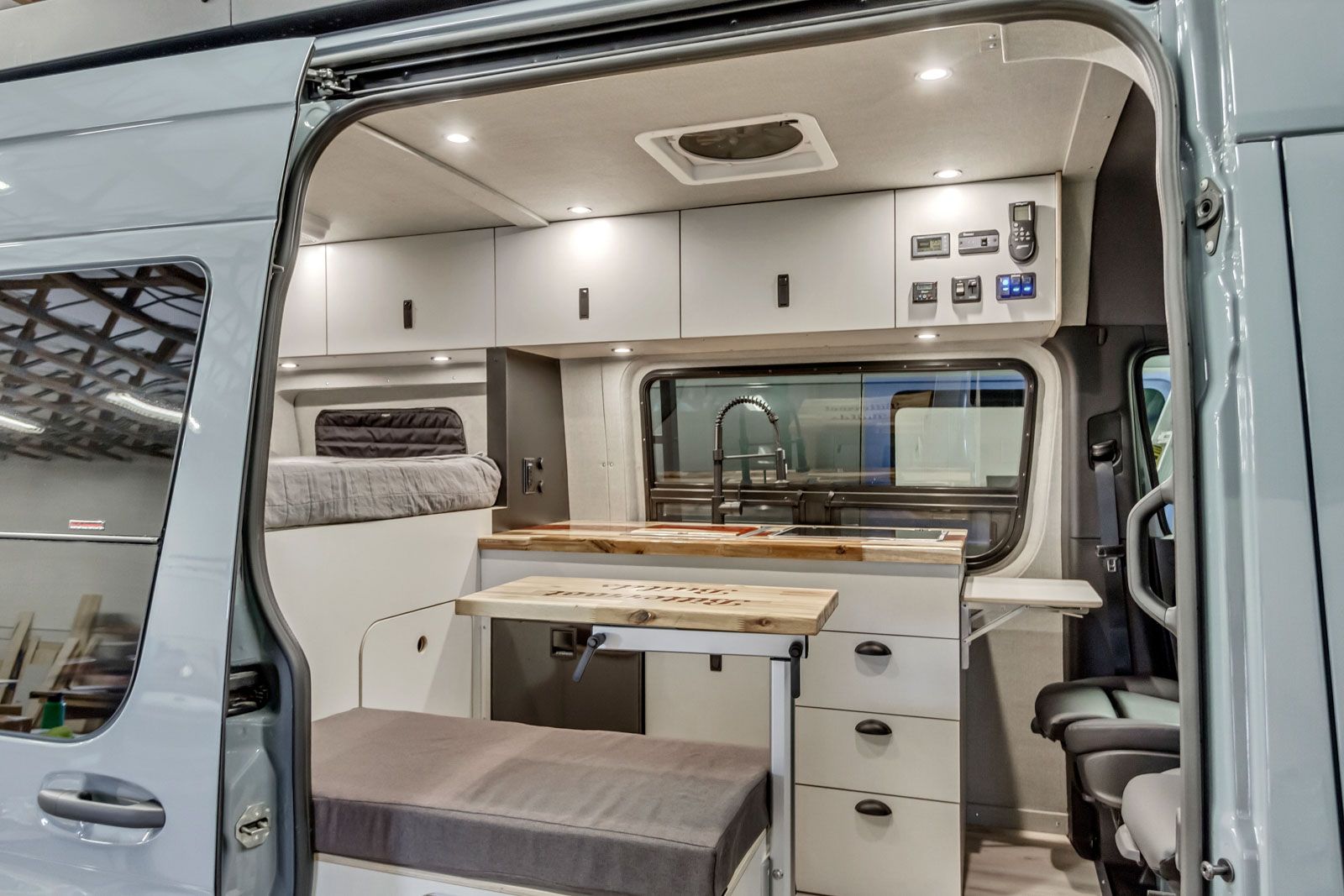

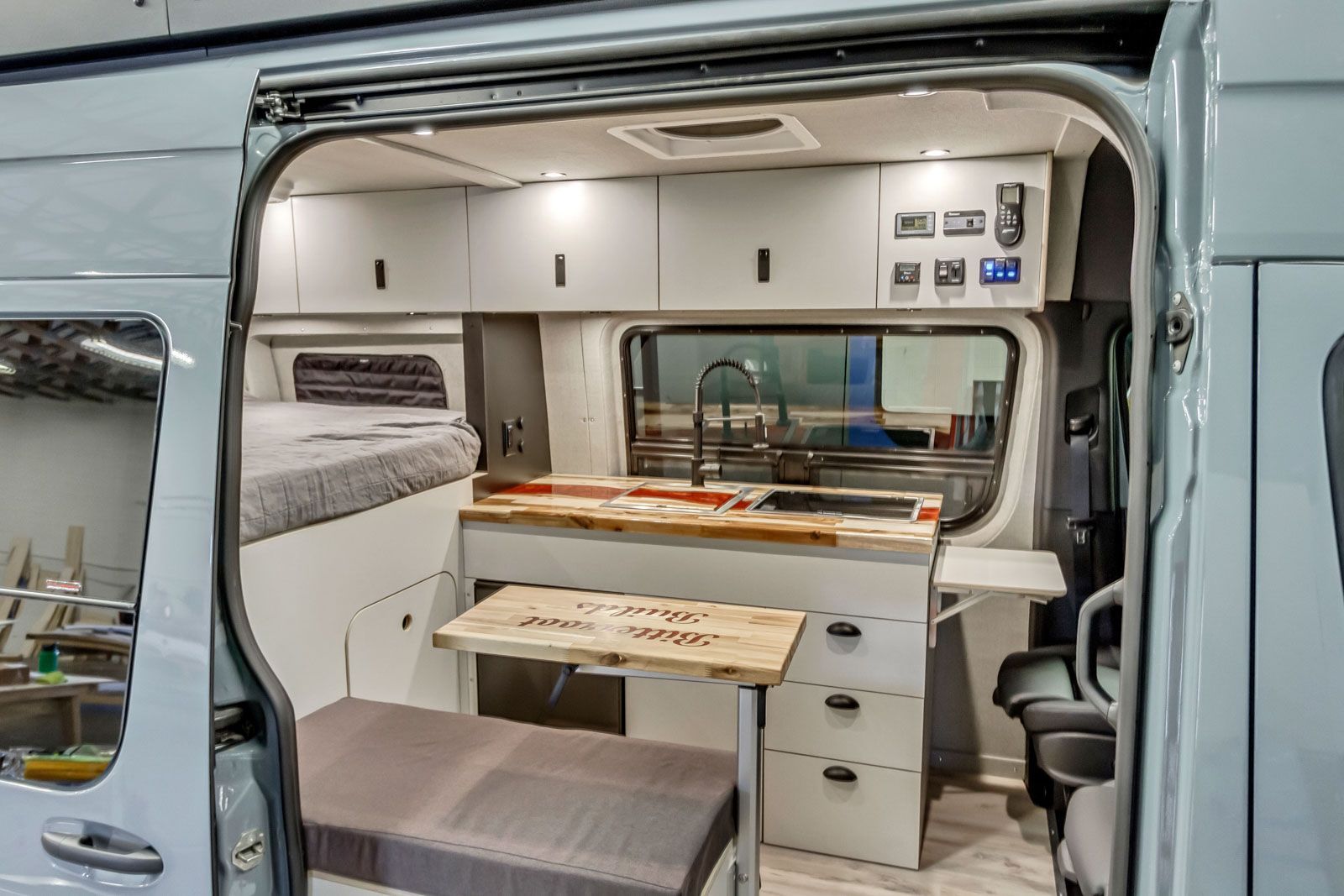

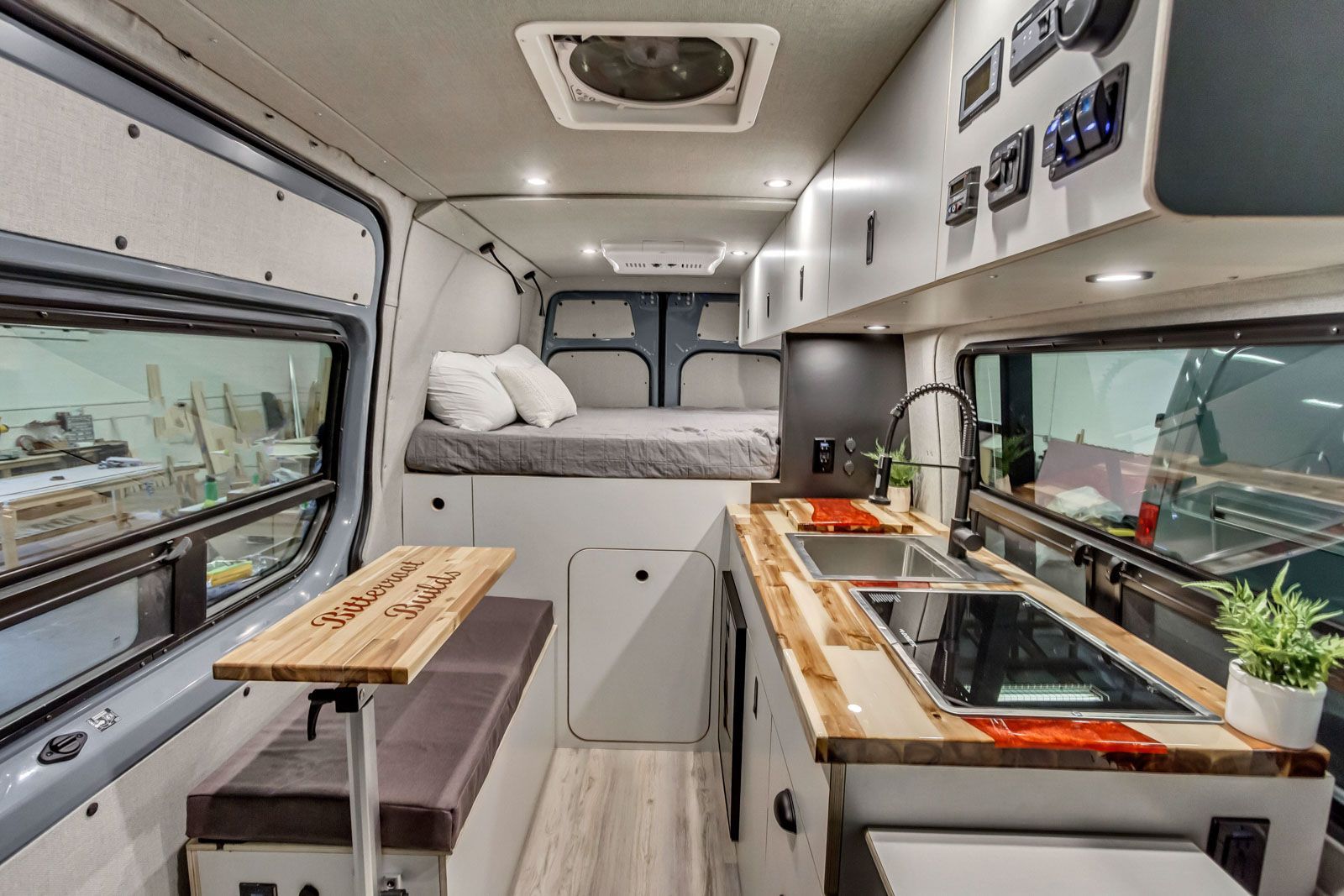

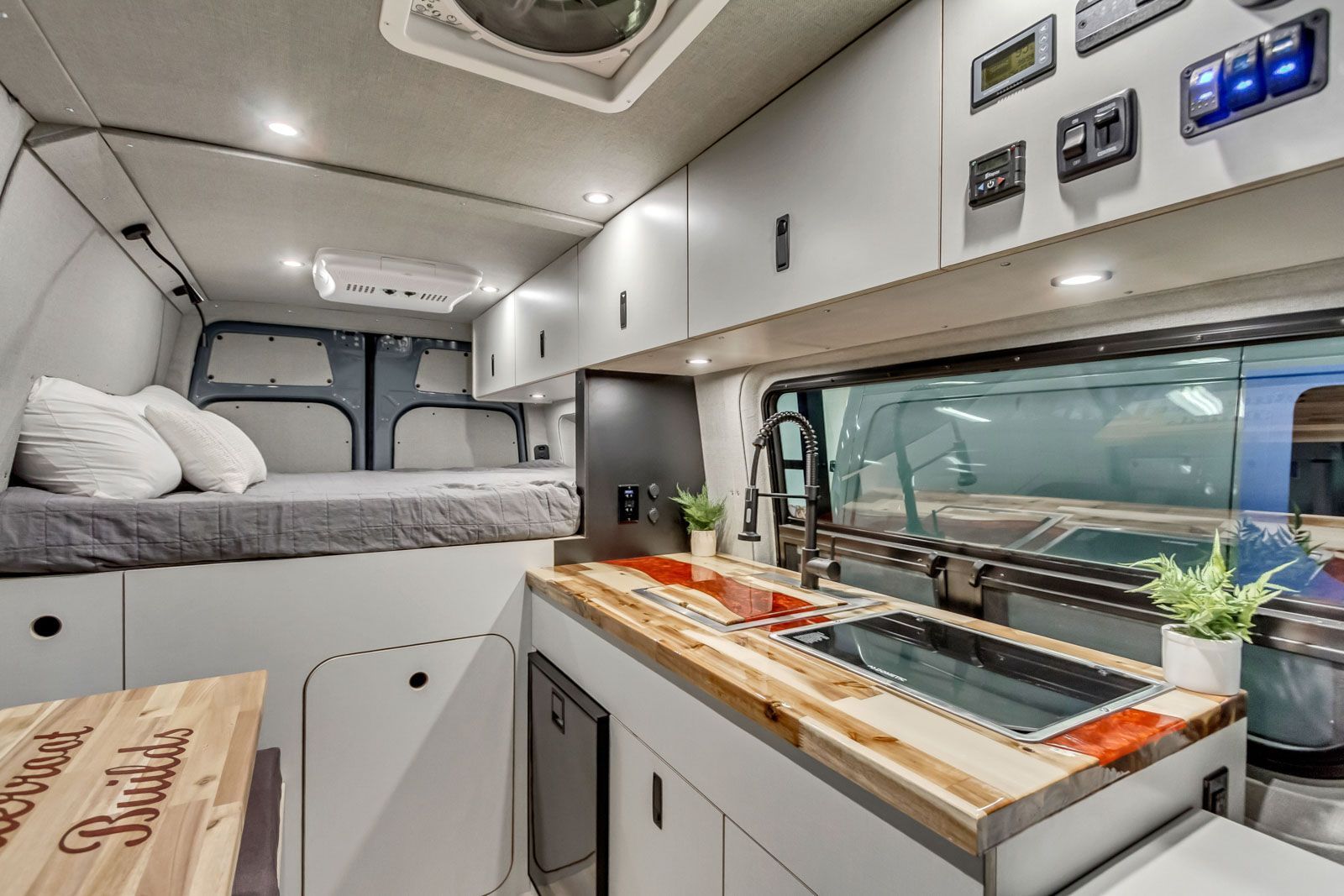

Kitchen: Kitchen Galley with Isotherm 85 Fridge and 4 Overhead Cabinets.

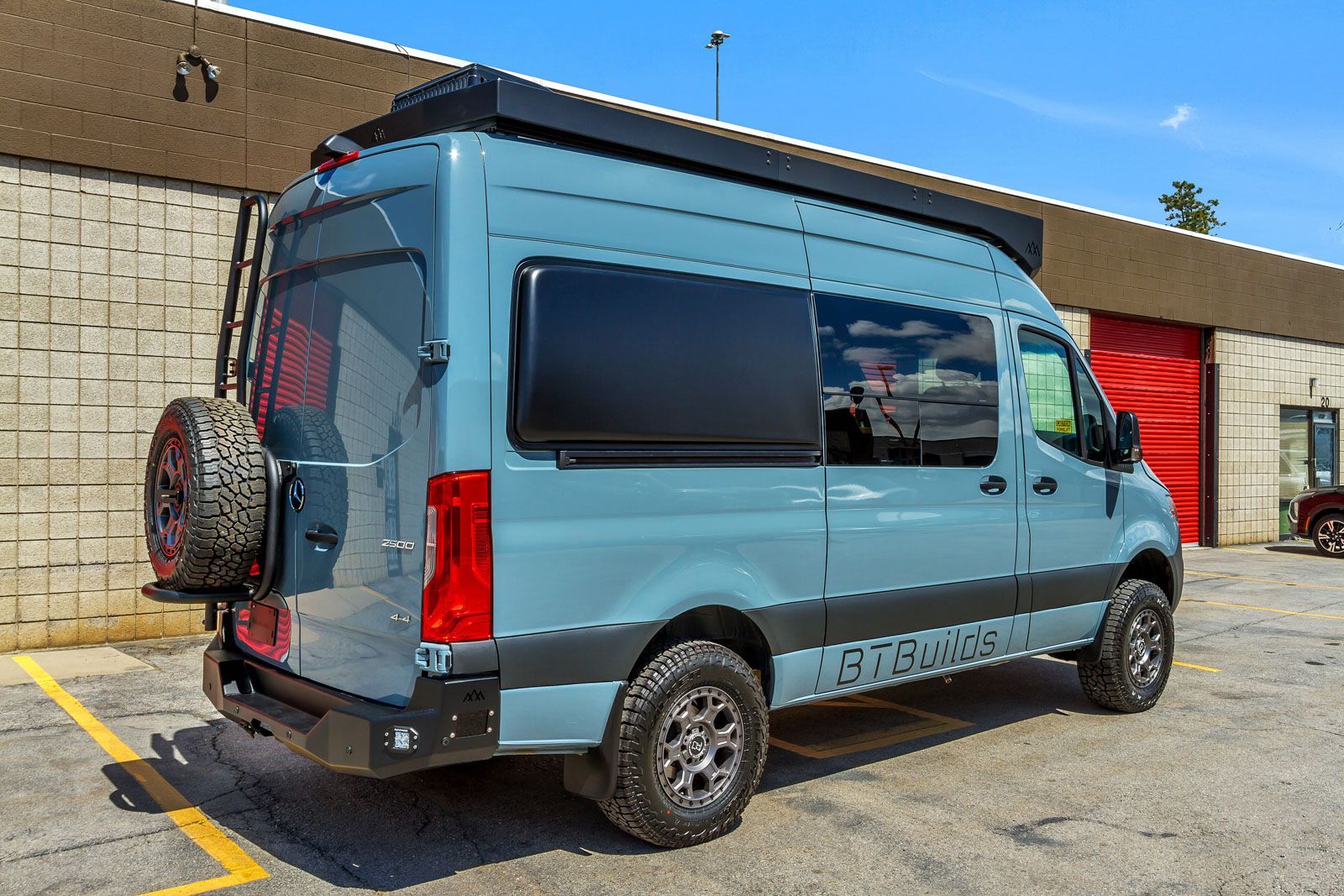

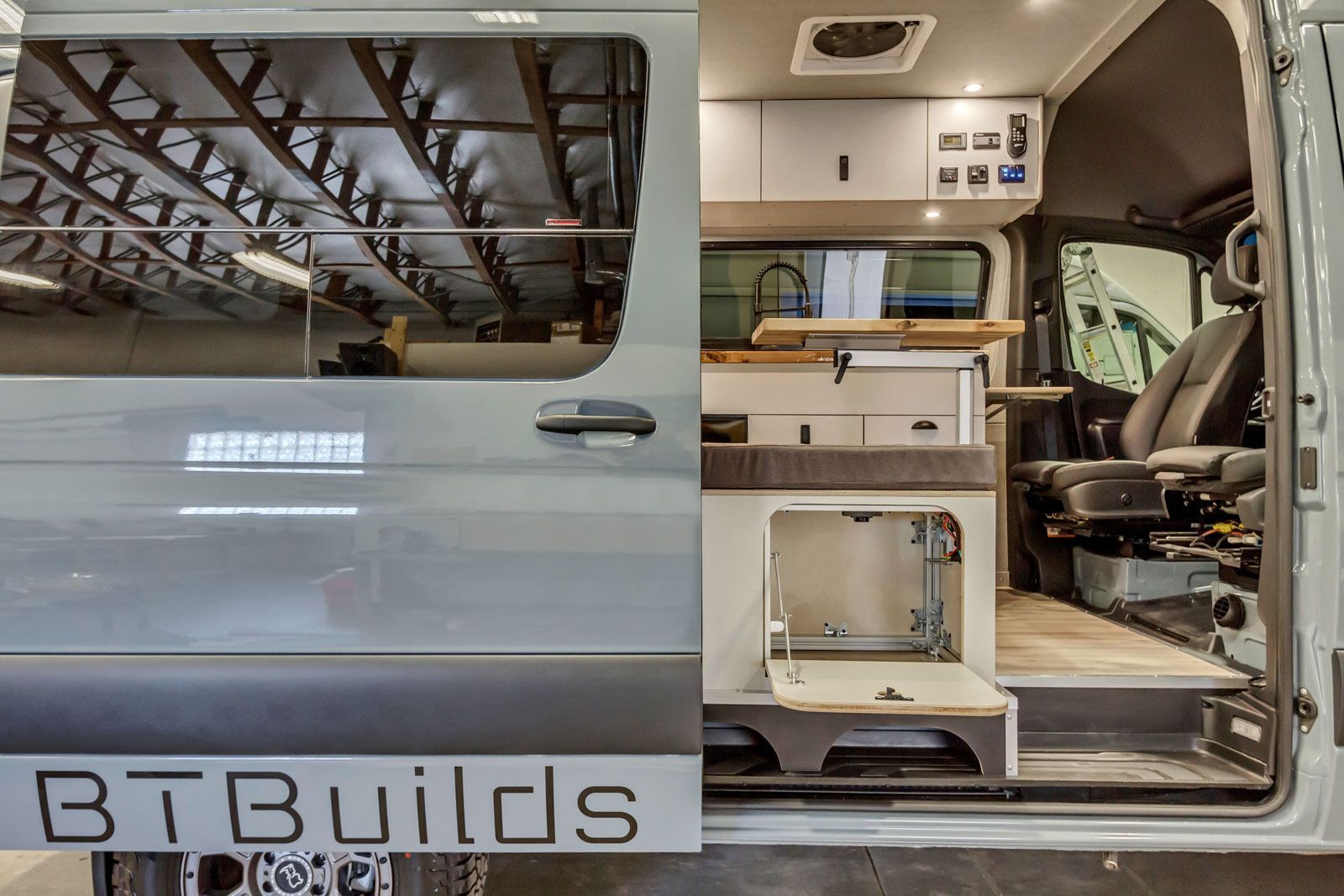

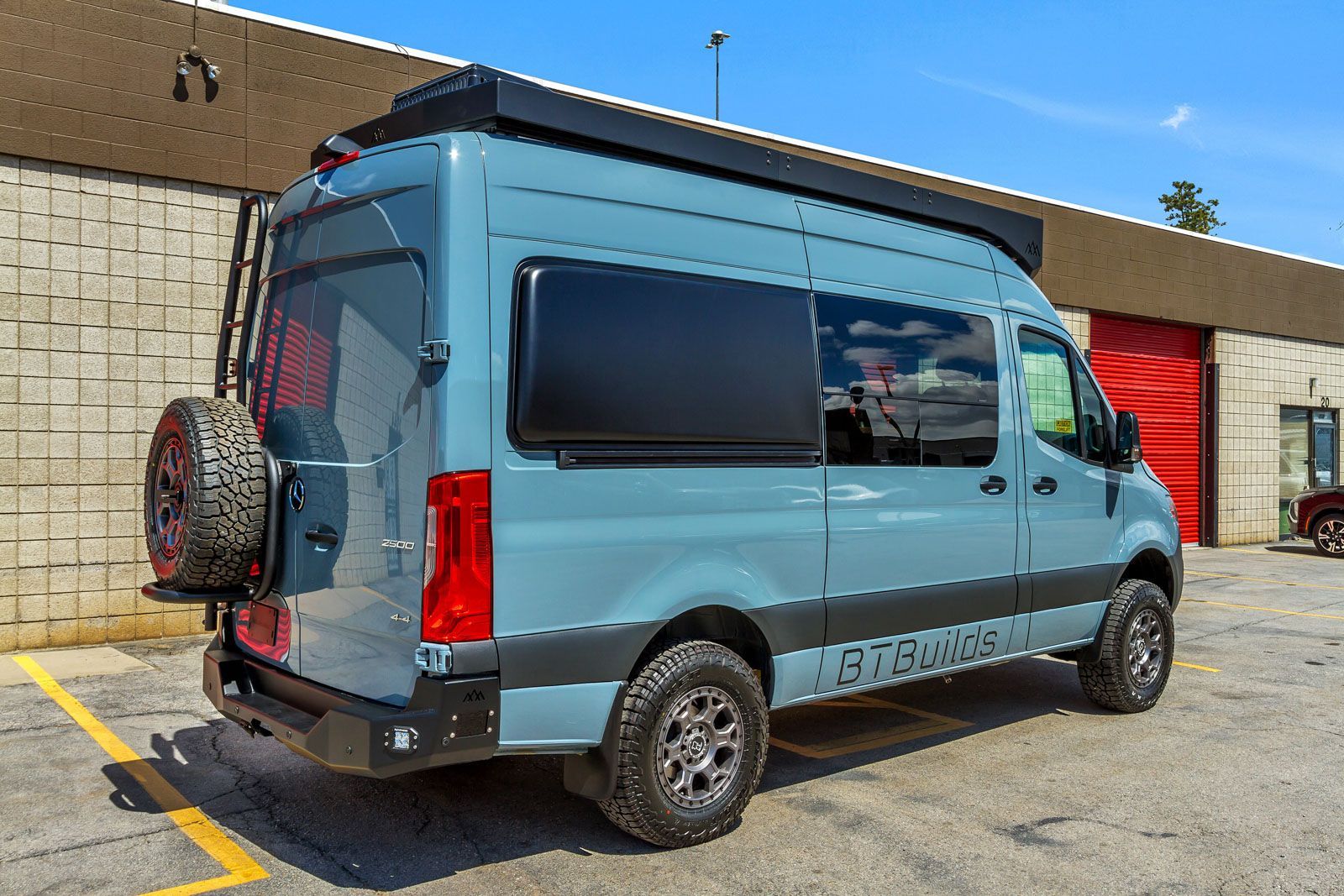

Access: Drop-down sliding door table and Owl Tire Ladder Carrier.

Climate & Insulation

  • Insulation: Bitterroot signature Four-season insulation package.
  • Cooling: Dometic AC system and MaxxFan Deluxe with Remote.
  • Heating: Airtronic D2 Diesel heater.
  • Windows: 2 CRL windows for cross-ventilation and views.

Lighting & Audio Ambiance

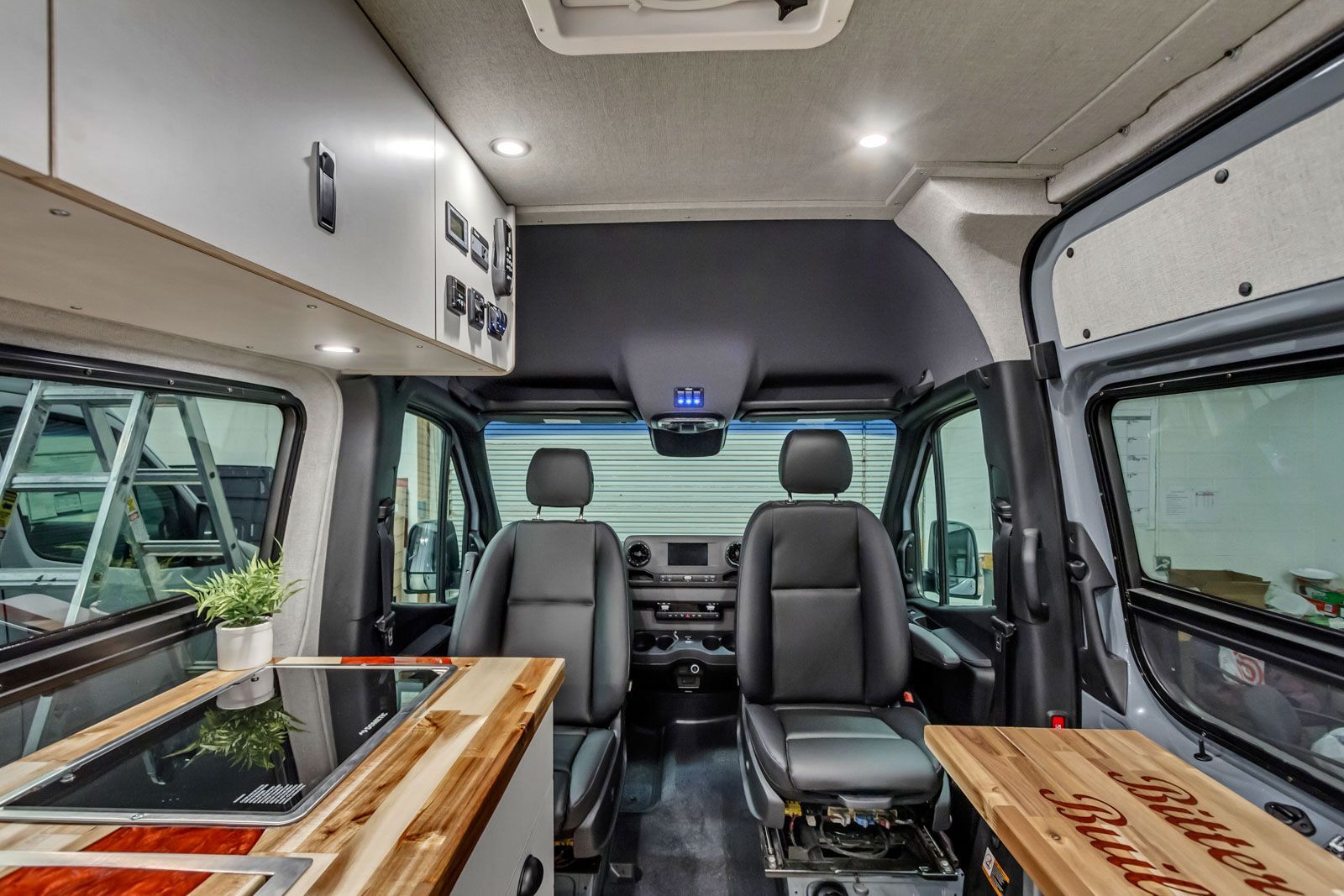

  • Main Lighting: Main Cabin LEDs with Dimmer switch.
  • Task Lighting: Integrated lighting under each overhead cabinet and Reading lights.

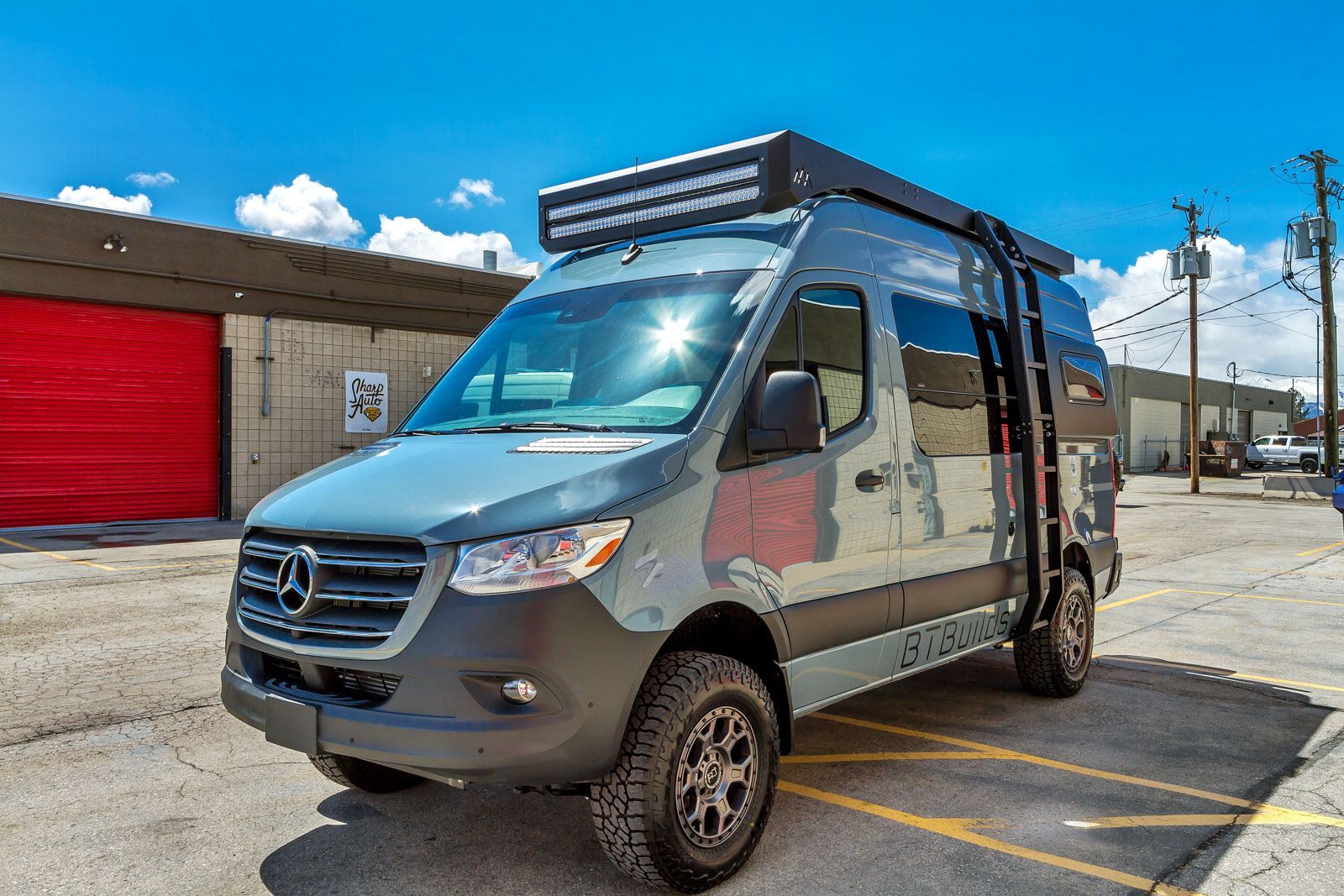

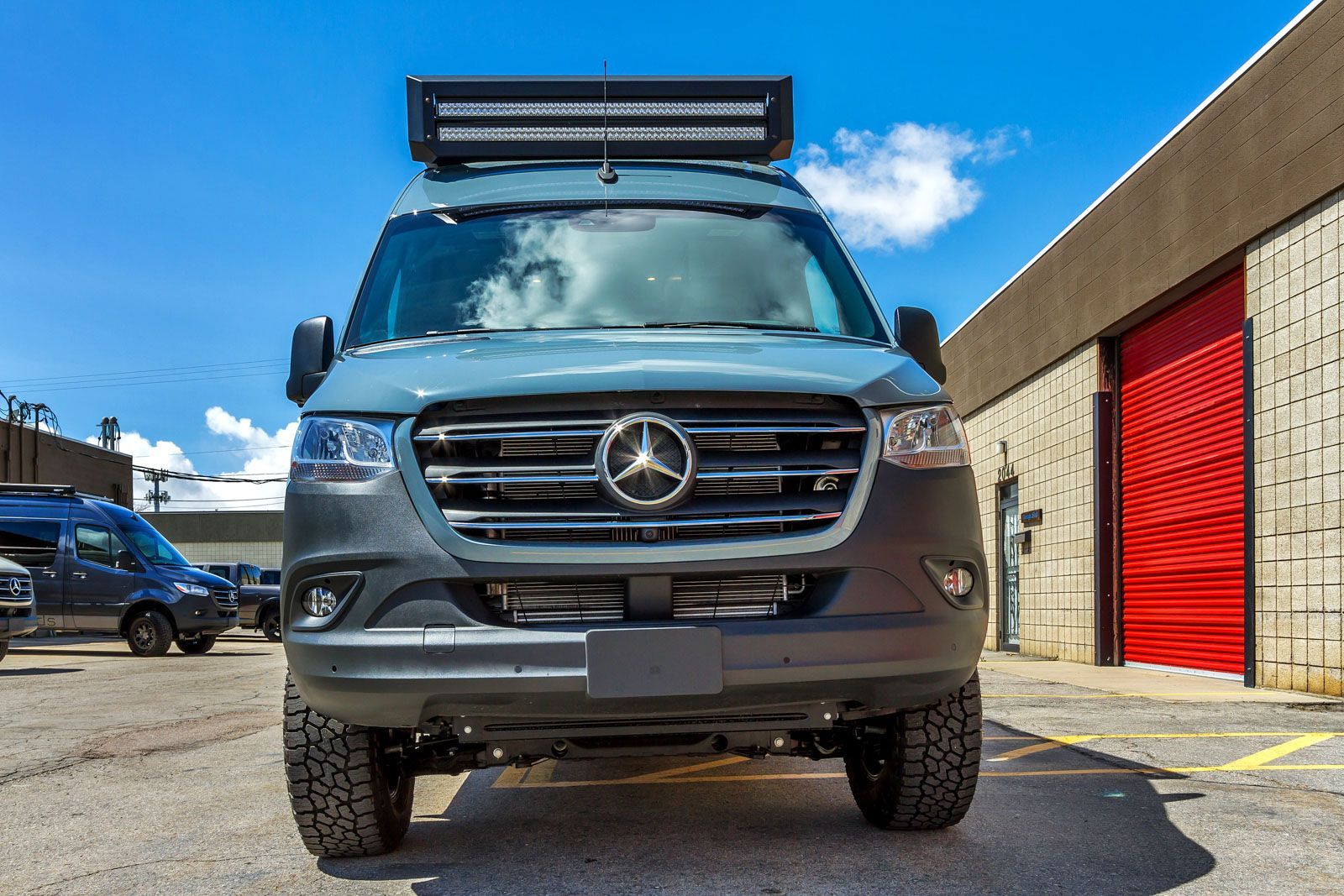

  • Exterior Lighting: High-output Backwoods Light Bars (Front & Rear)

Water & Sanitation

  • Storage: 20 Gallon Fresh Water Tank.
  • Hot Water: Tankless on-demand water heater.
  • Sanitation: Dometic Portable Toilet and Outdoor Shower.

Sink: Stainless Steel Sink with custom river cutting board cover.
